- For L-4.5CHWS/1694F Cables
- Gold-Plated Contact Pin
- Long Crimp Sleeve
- Position Mark on Body
- Exceeds SMPTE424M 3.0Gb/s Standards
- 10% Lighter Than BCP-C Series

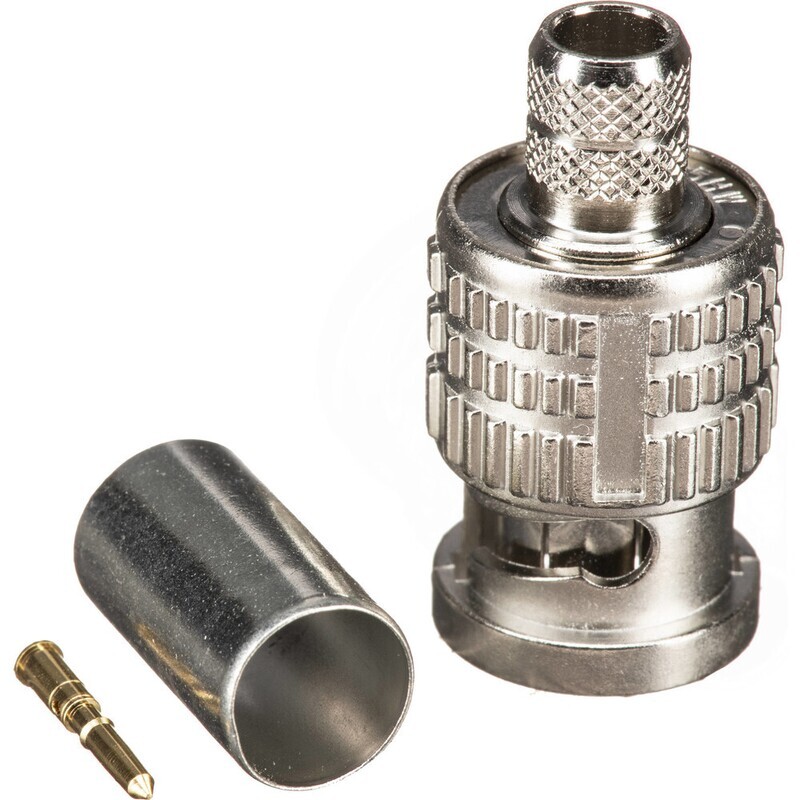

Canare BCP-B45HW Overview
The cost-effective Canare 3.0 GHz 75-Ohm BNC Plug for L-4.5CHWS/1694F Cables is a high-end BNC male cable end connector that easily handles 3 GHz performance and can be cable matched to provide an extremely strong high-end performance. The BCP-B series of plugs exceeds SMPTE 424M 3.0 Gb/s HD-SDI requirements and features a body design with a gold-plated center pin and an elongated crimp sleeve for easy gripping.
Die-cast body for cost-effective high performance
Gold-plated center pin with snap lock
Elongated sleeve design for easier handling
Compatible with Canare strip and crimp tools
Canare BCP-B45HW Specs
| Compatibility | L-4.5CHWS/1694F |
| Return Loss | (0 to 3 GHz) - 26 dB or Greater |
| Boot | CB05A |
| Coupling Sleeve | Zinc Alloy Die Casting |
| Center Pin | Gold Plating |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
Packaging Info
| Package Weight | 0.03 lb |
| Box Dimensions (LxWxH) | 4.75 x 3 x 0.7" |
