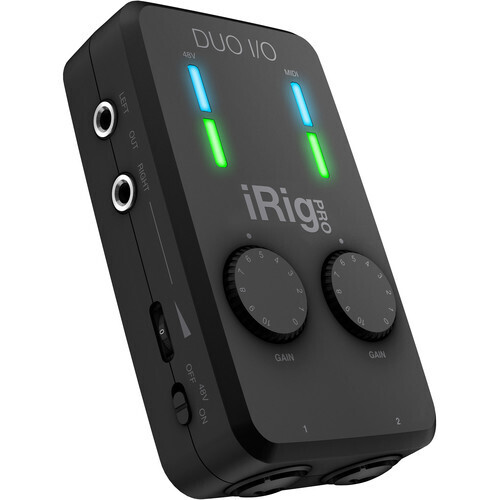

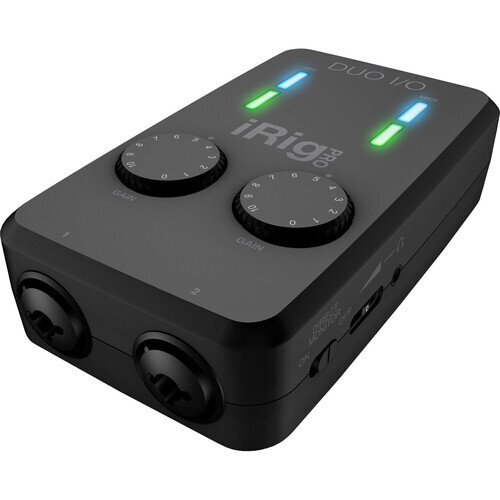

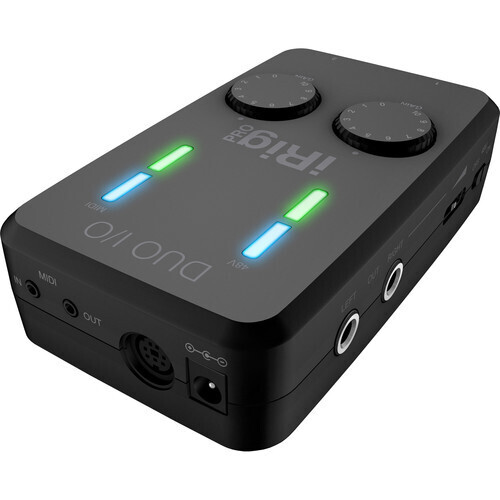

IK Multimedia iRig Pro Duo I/O 2-Channel Audio/MIDI Interface for Mobile Devices and Computers  #IKIRIGPRODUO MFR #IP-IRIG-PRODUOIO-IN

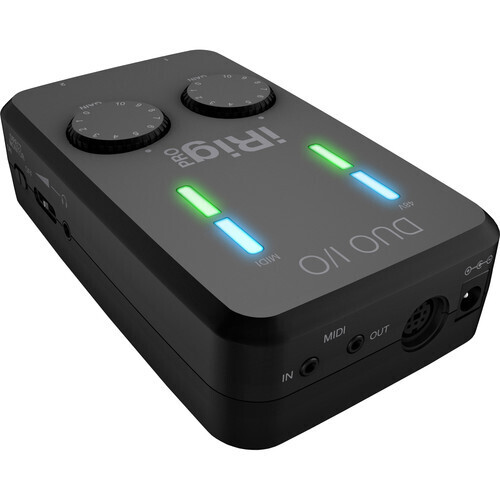

Building on the success of the original iRig Pro Duo, the IK Multimedia iRig Pro Duo I/O 2-channel audio/MIDI interface offers improved Class-A preamps, connectivity with Lightning or USB Type-C or USB Type-A devices, redesigned numbered pots, a new rugged finish, and an enhanced software/app bundle.

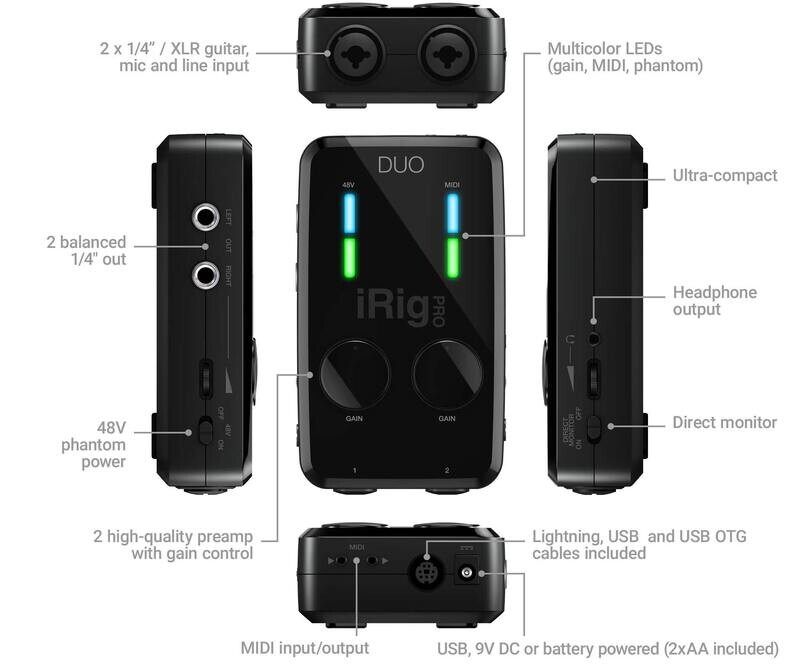

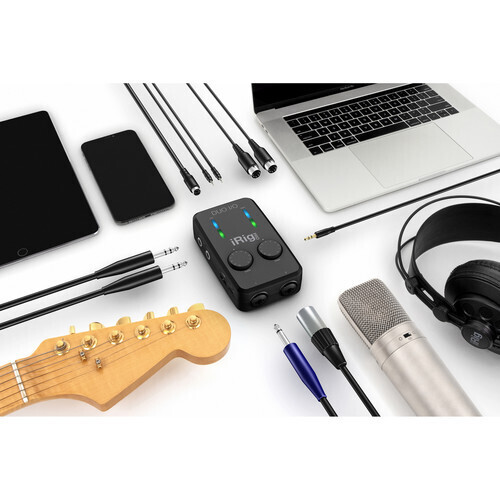

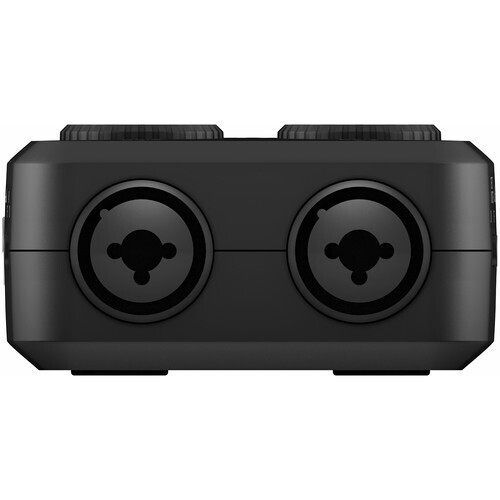

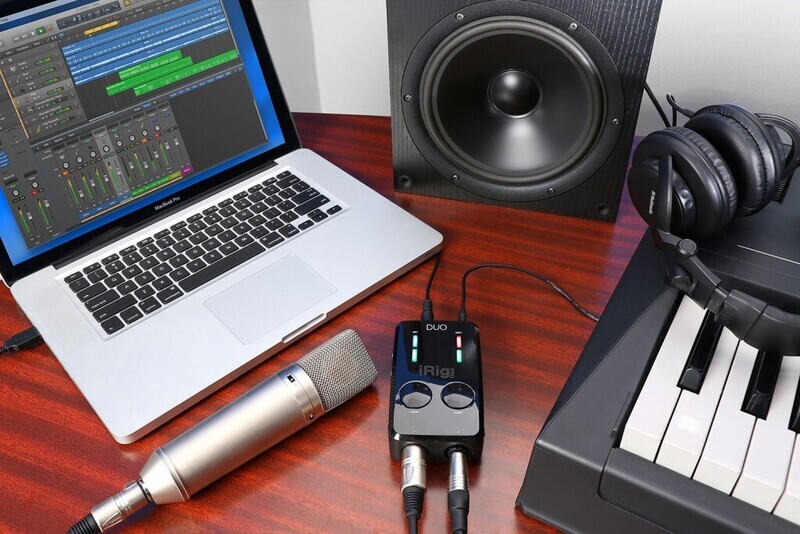

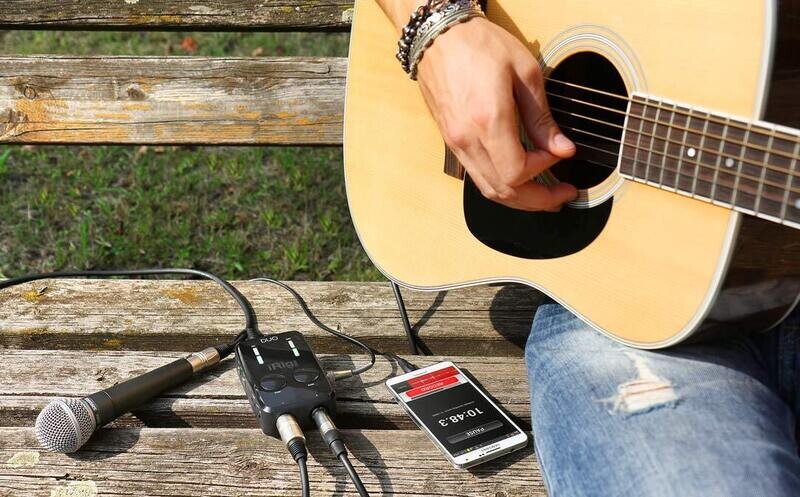

Its compact design is ideal for producing and recording high-quality content at home or on the go with iOS/Android mobile devices or Mac/Windows computers. The iRig Pro Duo I/O features two XLR-1/4" combo inputs for connecting microphones or instruments, selectable 48V phantom power, and the ability to accommodate your favorite MIDI equipment such as a keyboard, synth, or drum machine.

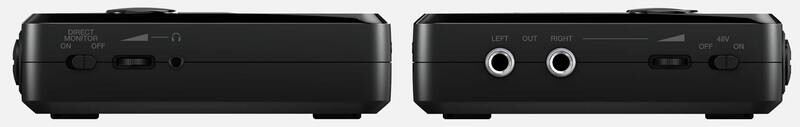

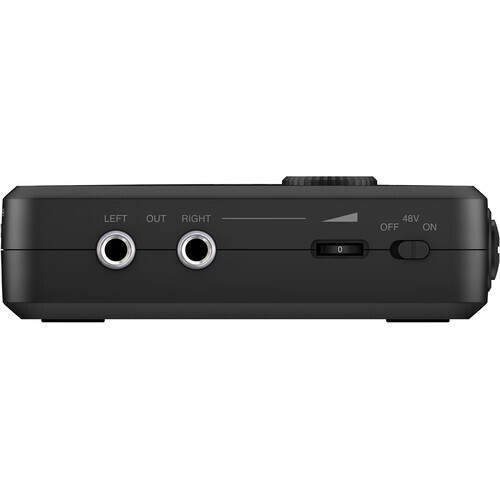

The 1/4" monitor outputs and 3.5mm headphone output have independent level controls for optimal monitoring through speakers and headphones. A switch on the right side of the iRig Pro Duo I/O allows you to listen to the direct input signal without latency or the processed return signal from your device. The iRig Pro Duo I/O can be powered via the two included AA batteries, USB bus power, or a separately available external power supply.

What's New

General Features

Included Software

• AmpliTube Essentials Bundle for AmpliTube CS for iPhone/iPad: Upgrade from CS (free) version to paid version for free
• SampleTank for iPhone/iPad: Free Sounds
• Mic Pack for VocaLive for iPhone/iPad: Unlock all microphone models included in the Mic Room section of VocaLive
• Pro Bundle for iRig Recorder for iPhone/iPad: Add professional effect such as Normalize, Three-Band EQ, Compressor, and Stereo Imager to iRig Recorder
• Microphones for Mic Room iOS: Velo 8 and Vintage Dynamic 20

• IK Multimedia IRig Pro Duo Specs

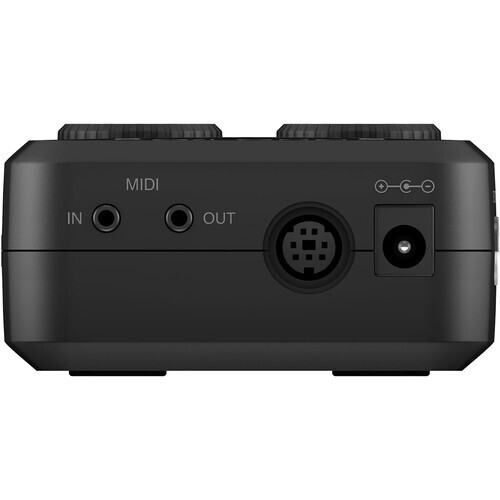

  Host Connection	1 x 7-Pin Mini-DIN
  Analog I/O	2 x XLR-1/4" Combo Mic/Instrument Inputs (Balanced/Unbalanced) 2 x 1/4" TRS Outputs (Balanced) 1 x 1/8" / 3.5 mm TRS Headphone Output (Unbalanced)
  MIDI I/O	1 x 2.5 mm TRS MIDI Input 1 x 2.5 mm TRS MIDI Output
  Phantom Power	48 VDC ±4 V (Selectable On/Off)
  Frequency Response	Microphone Input: 20 Hz to 20 kHz (±1.5 dB) Instrument Input at Minimum Gain: 2 Hz to 21 kHz (-3 dB) Instrument Input at Maximum Gain: 5 Hz to 21 kHz (-3 dB) Line Output: 10 Hz to 21 kHz (-3 dB)
  Gain Range	Microphone Input: 50 dB Instrument Input: 27 dB
  Input Level	Microphone Input: 6 mV p-p to 1.4 V p-p Instrument Input: 30 mV p-p to 6.9 V p-p
  Maximum Output Level	+16 dBu in 600-Ohm Balanced Load
  Input Impedance	Microphone Input: 3.2 Kilohms Instrument Input: 1 Megohm
  Output Impedance	150 Ohms Balanced
  Dynamic Range	Line Output: 106 dBA
  Input Noise	Microphone Input: -103 dBA, -97 dB RMS Instrument Input at Minimum Gain: -104 dBA Instrument Input at Maximum Gain: -102 dBA
  Bit Depth	24-Bit (A/D and D/A Resolution)
  Sample Rate	44.1 or 48 kHz
  Power Requirements	2 x AA Batteries (Included), USB Bus Power, or 9 VDC External Power Supply (Available Separately)
  Battery Life	Recording (Both Inputs Connected to 1.5 mA Phantom-Powered Loads, Maximum Input Gain, Maximum Output Level): 3.5 Hours (NiMH Rechargeable), 3.75 Hours (Alkaline) Playback (Music Playing, Phantom Power Off): 10 Hours (NiMH Rechargeable), 3 Hours (Alkaline)
  Compatibility	macOS 10.6 or Later Available USB Port Windows Available USB Port IK Multimedia iRig Audio Driver Required for Low Latency iOS 7.0 or Later iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s iPad Pro 10.5", iPad Pro 12.9" (2nd Generation), iPad Pro 9.7", iPad Pro 12.9" (1st Generation), iPad Air 2, iPad Air, iPad mini 4, iPad mini 3, iPad mini 2, iPad (6th Generation), iPad (5th Generation) iPod touch (6th Generation) Android 5 or Later iOS/Android Mobile Devices Mac/Windows Computers
  Dimensions (W x H x D)	3.0 x 1.5 x 5.0" / 7.5 x 3.7 x 12.7 cm
  Weight	7 oz / 198 g (Excluding Batteries)
