Neutrik NAC3MPA-1 Overview

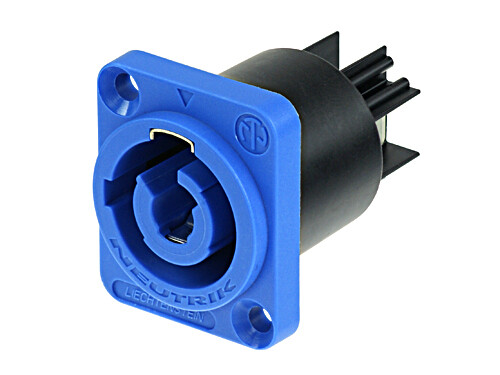

The Neutrik NAC3MPA-1 powerCON Power-In Coupler is a locking 3-conductor equipment AC connector with contacts for line, neutral and pre-mating ground. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Note:The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live.
Neutrik NAC3MPA-1 Specs
Interface
| Connector 1 | 1 x PowerCON |
| Connector 2 | Bare Ends |
Electrical
| Maximum Voltage | 250 V |
| Current | 20 A |
Packaging Info
| Package Weight | 0.03 lb |
| Box Dimensions (LxWxH) | 3.25 x 1.85 x 1.2" |
