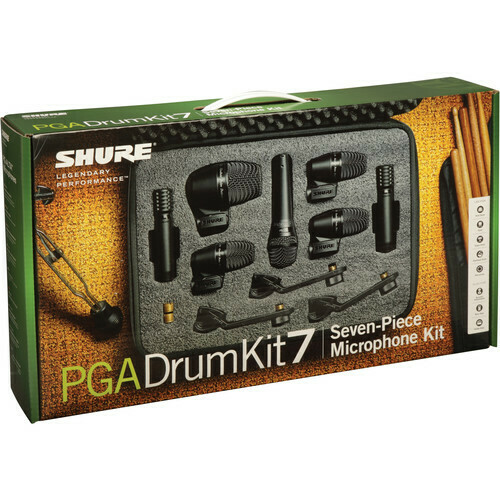

The PGADRUMKIT7 from Shure is a 7-piece professional-quality drum microphone kit designed to capture sound for close-mic kick drum, snare, and tom performance sets. It can be used in audio applications for live stage, theater, houses of worship, and more.

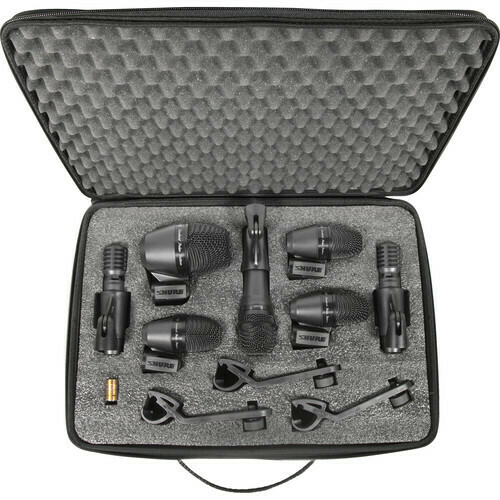

Included in the PGADRUMKIT7 are one PGA52 kick drum microphone, three PGA56 drum microphones for toms and snare, one PGA57 instrument microphone, and two PGA81 condenser microphones. In addition, three drum mounts, three microphone clips, seven XLR-XLR cables, and a carrying case are also included.
Shure PGA-Drum Specs
| Type | Dynamic (moving coil) |
| Frequency Response | PGA52: 50 Hz to 15 kHz
PGA56: 50 Hz to 15 kHz
PGA57: 70 Hz to 15 kHz
PGA81: 40 Hz to 18 kHz |
| Polar Pattern | Cardioid |
| Output Impedance | PGA52: 150 ohms
PGA56: 200 ohms
PGA57: 150 ohms
PGA81: 600 ohms |
| Cable | None |
| Sensitivity | PGA52: -55 dBV/Pa (1.75 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage
PGA56: -57 dBV/Pa (1.45 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage
PGA57: -56 dBV/Pa (1.5 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage
PGA81: -48 dBV/Pa (3.8 mV) 1 Pa=94 dB SPL @ 1 kHz, open circuit voltage |
| Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 |
| Output Connector | 3-pin XLR male |
| Power Requirements | PGA52: N/A
PGA56: N/A
PGA57: N/A
PGA81: 48 VDC phantom power (2.0 mA) |
| Operating Temperature | -20 to 165°F (-29 to 74°C) |
| Operating Humidity | 0 to 95% |
| Dimensions | Not specified by manufacturer |
| Weight | PGA52: 16.01 oz (454 g)
PGA56: 10.12 oz (287 g)
PGA57: 9.9 oz (280 g)
PGA81: 6.6 oz (186 g) |
Packaging Info
| Package Weight | 12.85 lb |
| Box Dimensions (LxWxH) | 22.5 x 13 x 4.2" |
