Key Features
- 15" Woofer
- 6.5" Midrange Driver
- 1.75" Compression Tweeter
- 2 x 500W Class-D Amplifiers
- XLR/TRS Combo and RCA Inputs
- XLR Line and Mix Outputs
- Integrated DSP with DEEP
- Intrinsic Correction and GuardRail
- Directivity Matched Transition Coverage
- Pole Socket and Rigging Points
QSC KW153 Overview
The KW153 from QSC is a professional-quality active 3-way PA loudspeaker. Ideal for music and speech applications, the lightweight and rugged birch cabinet houses a 15" woofer, a 6.5" midrange driver, and a 1.75" compression tweeter to deliver crisp, natural audio with a wide frequency response. A pair of efficient Class-D amplifiers provide a combined power of 1000W for strong audio with low distortion. Directivity Matched Transition technology provides matched low and high frequency coverage across your entire listening area to eliminate "dead" and "hot" zones.

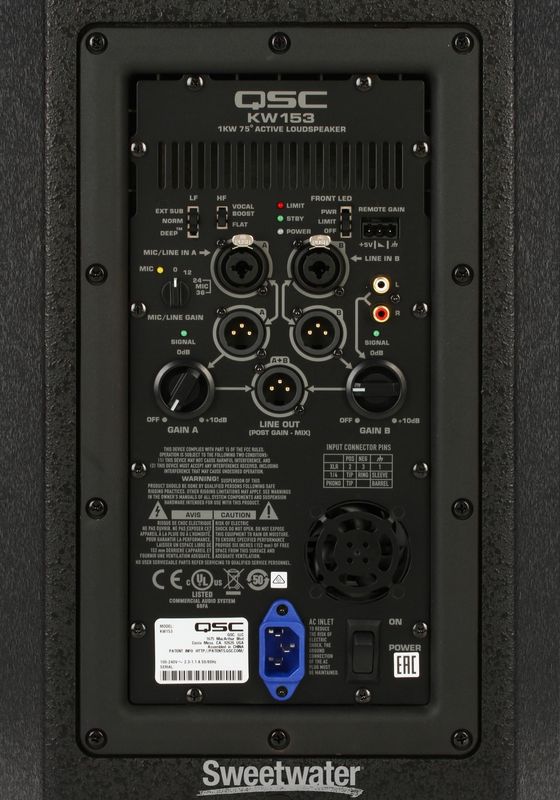

The speaker offers excellent connectivity, with XLR/TRS combo inputs and line-level RCA inputs for accepting a variety of sound sources. Up to 3 audio sources can be mixed internally and sent to the outputs. Direct XLR outputs are provided for each channel, as well as a mix output for daisy-chaining. Extensive internal DSP includes Intrinsic Correction, DEEP, and GuardRail technologies to provide terrific sonic clarity and component protection for reliable operation.

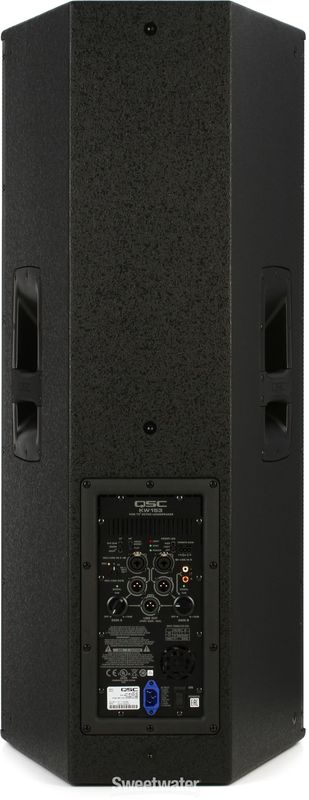

Onboard control options allow you to adjust EQ to perfectly match your surroundings and applications. You can also use the rear-panel Phoenix connector to connect an external potentiometer (not included) for remote gain control. The speaker has a standard 35mm pole socket and integrated M10 suspension points for easy mounting and installation. It also has ergonomic cast-aluminum handles for easy transport.
Can be used as a PA loudspeaker for music or speech applications
Lightweight and durable texture-painted birch cabinet with road-worthy 16-gauge steel grille
A 15" woofer, 6.5 midrange driver, and a 1.75" compression tweeter deliver crisp, natural audio with a wide frequency response
Efficient Class-D amplifiers provide a combined power of 1000W for strong audio with low distortion
Directivity Matched Transition technology provides matched low and high frequency coverage across your entire listening area to eliminate "dead" and "hot" zones
A conical wave guide eliminates the phase distortions of typical asymmetric horns for more natural audio reproduction
XLR/TRS combo inputs and line-level RCA inputs allow the speaker to accept up to 3 audio sources that can be mixed internally and sent to the outputs. Direct XLR outputs are provided for each channel, as well as a mix output for daisy-chaining
Intrinsic Correction maps 65-75 spatially-averaged measurements to IIR and FIR filters that actively adjust time, frequency and amplitude response to a maximally flat bandpass target, for excellent performance across the entire sound field
DEEP technology and excursion limiting allow for extended low-frequency response by actively managing low-frequency transients without degradation of the underlying signal or adjacent frequencies
GuardRail protection technology protects both the amplifier module and your performance from unnatural and destructive clipping
Multiple EQ modes let you optimize the speaker's output for specific applications with the flip of a switch
The onboard LED indicator can be set to illuminate when power is on, to only illuminate when the clip limiter circuit is engaged, or to always be off
The rear-panel Phoenix connector allows you to connect an external potentiometer (not included) for remote gain control. You can even control multiple daisy-chained speakers from a single control pot
A standard 35mm pole socket and integrated M10 suspension points provide easy mounting and installation

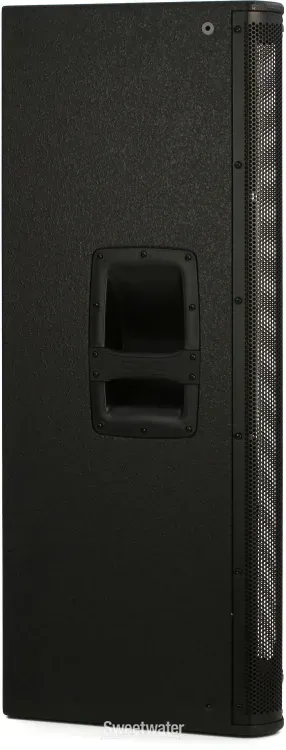

Ergonomic cast-aluminum handles for easy transport
A locking power cable prevents accidental disconnection, while an automatic standby mode conserves energy and extends the life of the loudspeaker
QSC KW153 Specs
PA Speaker
| Configuration | Active 3-Way |
| Total Power Capacity | 1000 W RMS
2000 W Peak |
| Amplifier Class | Class-D |
Drivers
| HF Driver | 1 x 1.75" / 44 mm Compression Driver |
| MF Driver | 1x 6.5" / 165 mm Cone |
| LF Driver | 1x 15" / 387 mm Woofer |
Performance
| Frequency Response | 35 Hz to 18 kHz -6 dB
37 Hz to 20 kHz -10 dB |
| Maximum SPL | 134 dB (Peak) |
| Coverage Angle | 75° H x 75° V |
| Gain Range | 36 dB |
| I/O Impedance | Mic Input:
38 Kilohms (Balanced)
19 Kilohms (Unbalanced, Unity Gain)
RCA Input:
10 Kilohms |
| Protections | Excursion, Overcurrent, Thermal |
Connectivity
| Audio I/O | 2x Combo XLR-1/4" TRS Mic/Line Input
1x Stereo RCA Line Input
2x XLR 3-Pin Line Output
1x XLR 3-Pin Mix Output
1x Block Remote Input |
Power
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| AC Power I/O | 1x IEC (Locking) |
| Current Consumption | 100 VAC:
2.3 A
120 VAC:
2.01 A
230 VAC:
1.13 A |
Physical
| Cooling | Fan (Variable Speed) |
| Construction Material | Metal Grille, Plywood |
| Dimensions | 43.1 x 18.5 x 16.8" / 1094 x 470 x 427 mm |
| Weight | 87 lb / 39.5 kg |
Packaging Info
| Package Weight | 107.75 lb |
| Box Dimensions (LxWxH) | 44 x 24 x 24" |
