Key Features
- 12-Input Analog Mixer
- 8 Ghost Mic Preamps
- Sapphyre British EQ Per Channel
- 2-in/2-out USB Recording
- Lexicon Effects Engine
- Switchable Hi-Z inputs
- HPF & 48V on Mic Channels

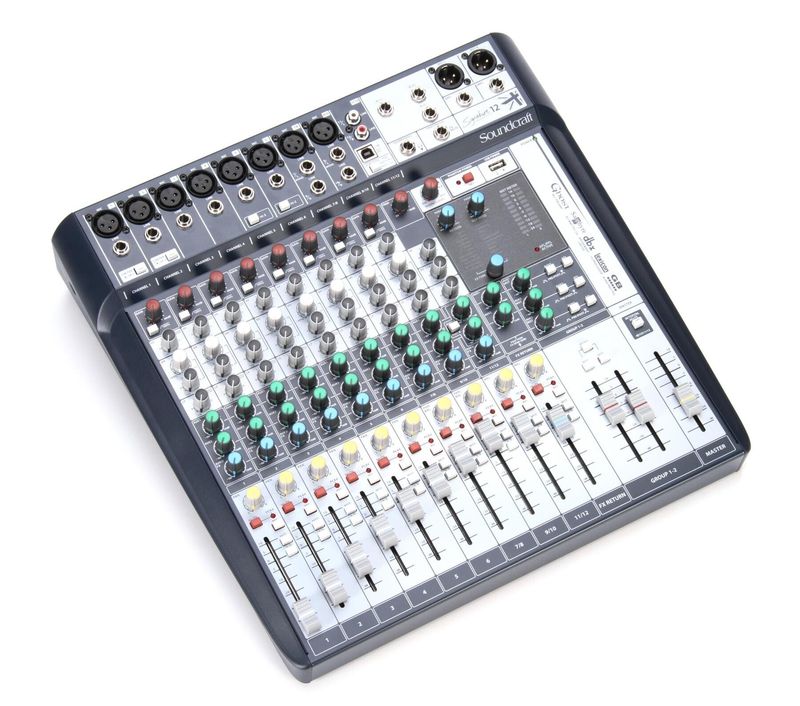

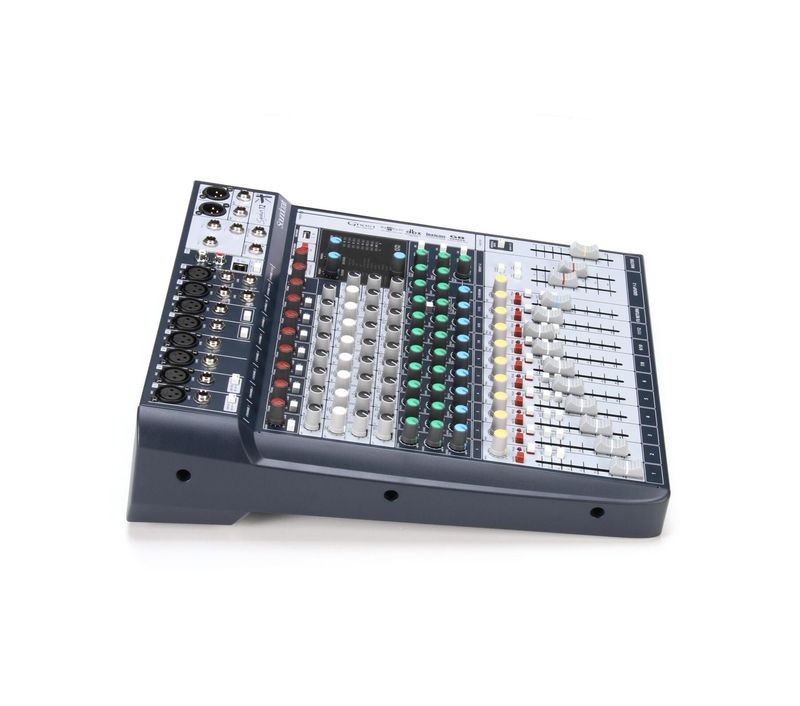

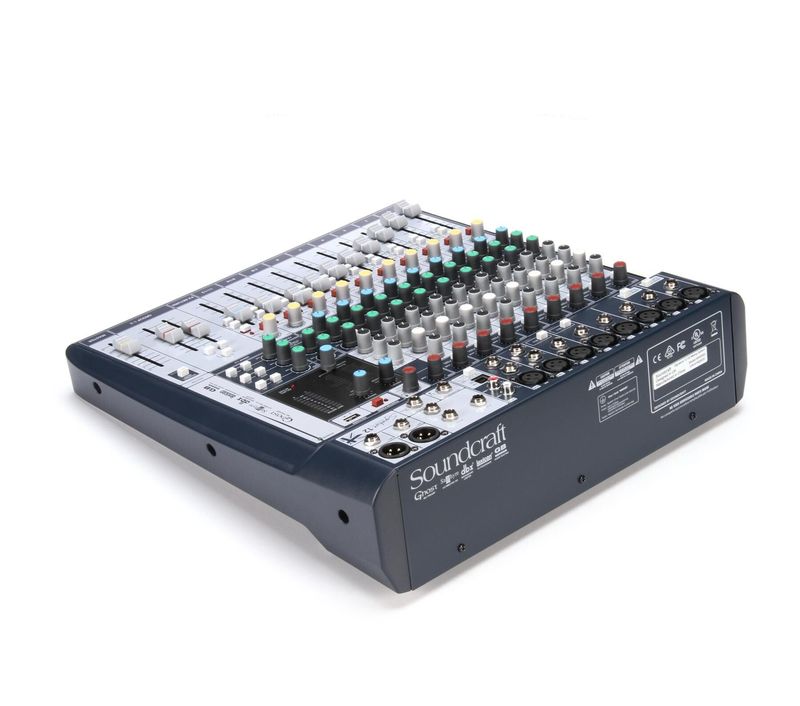

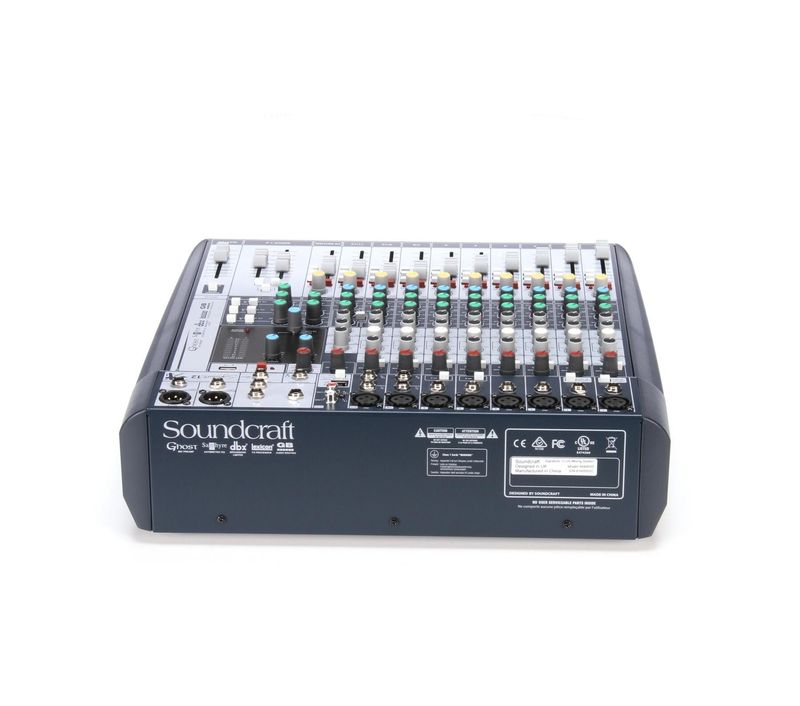

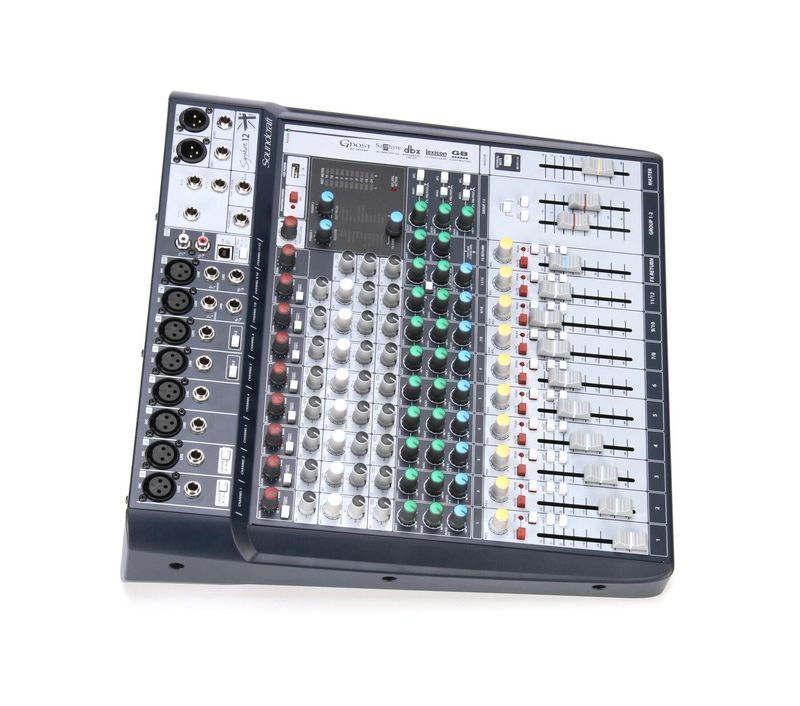

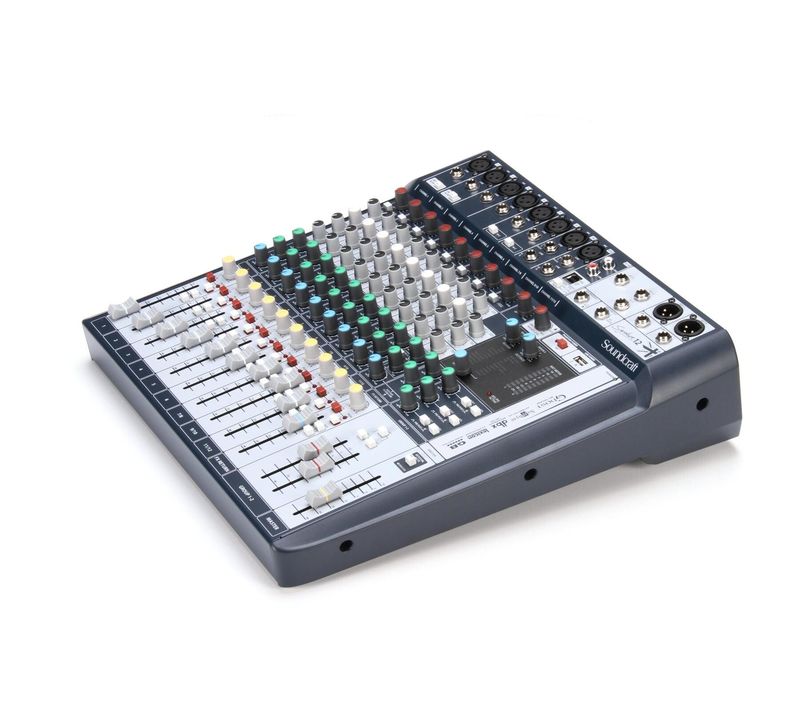

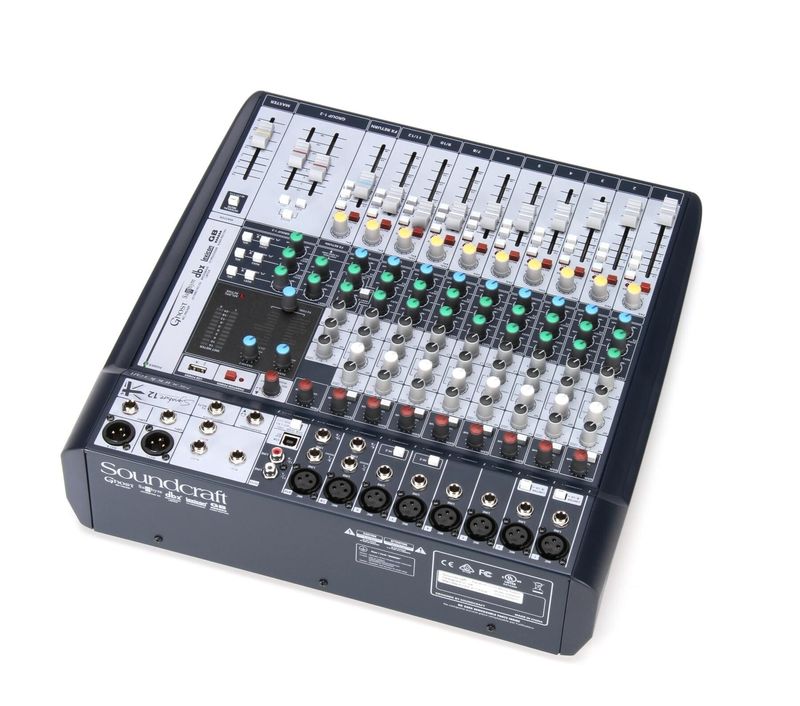

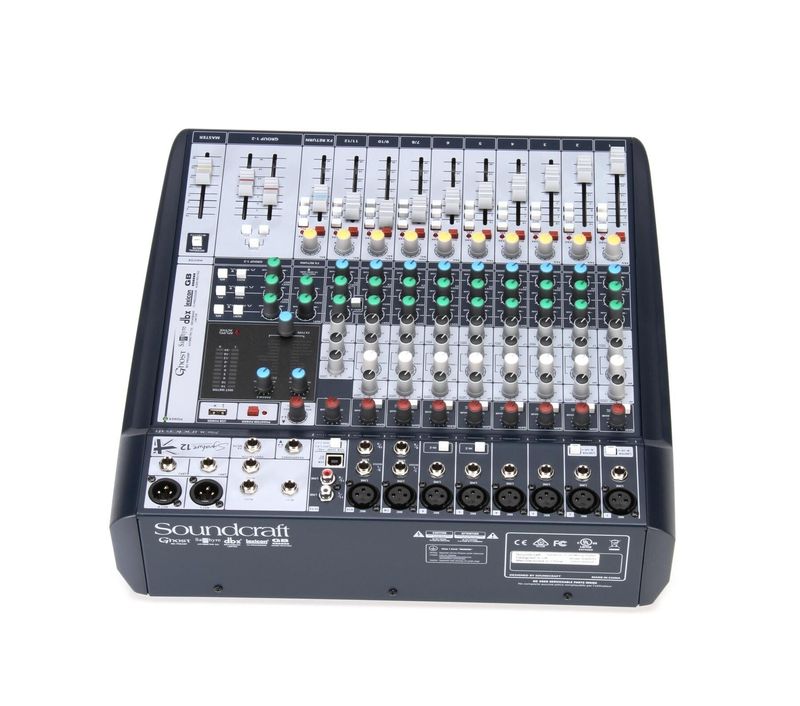

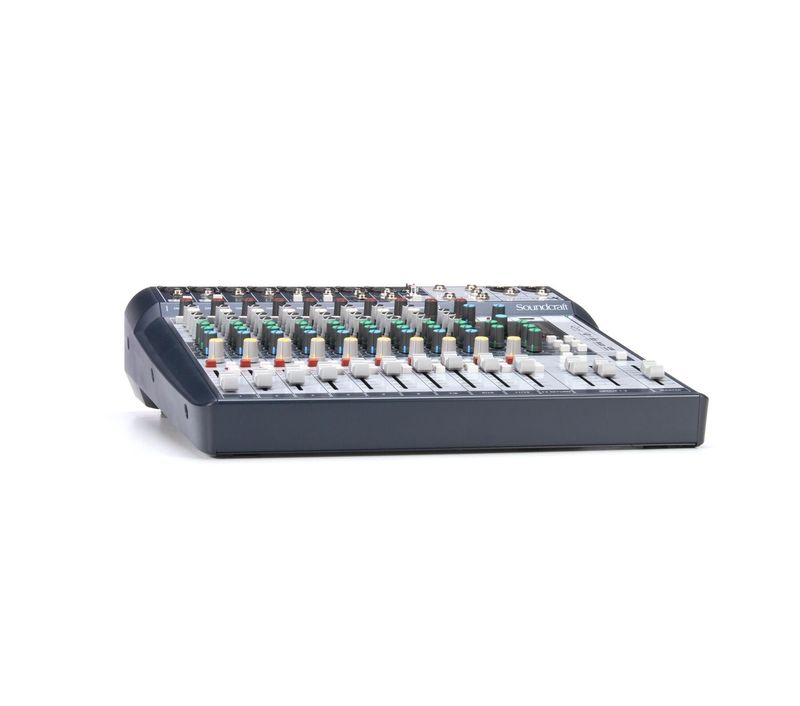

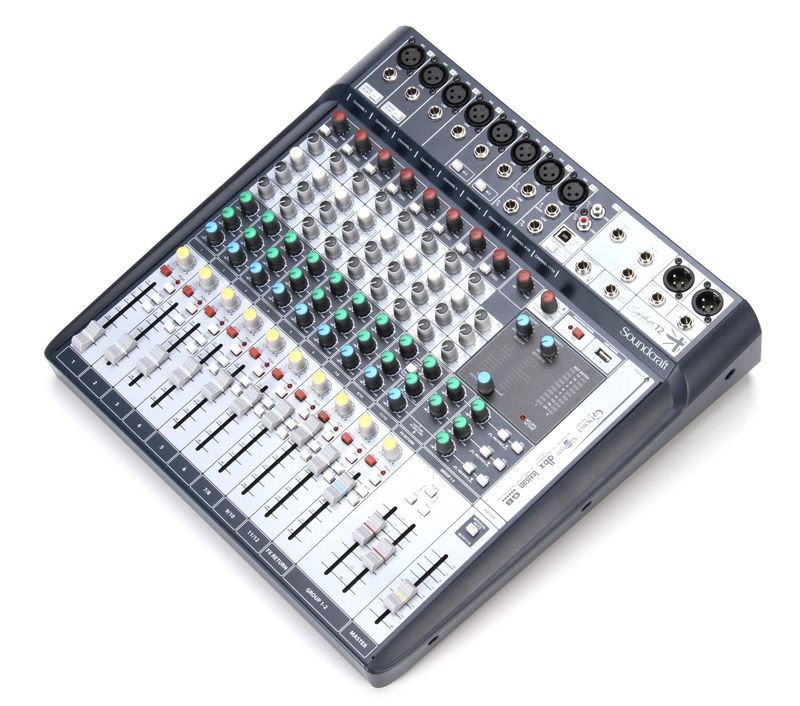

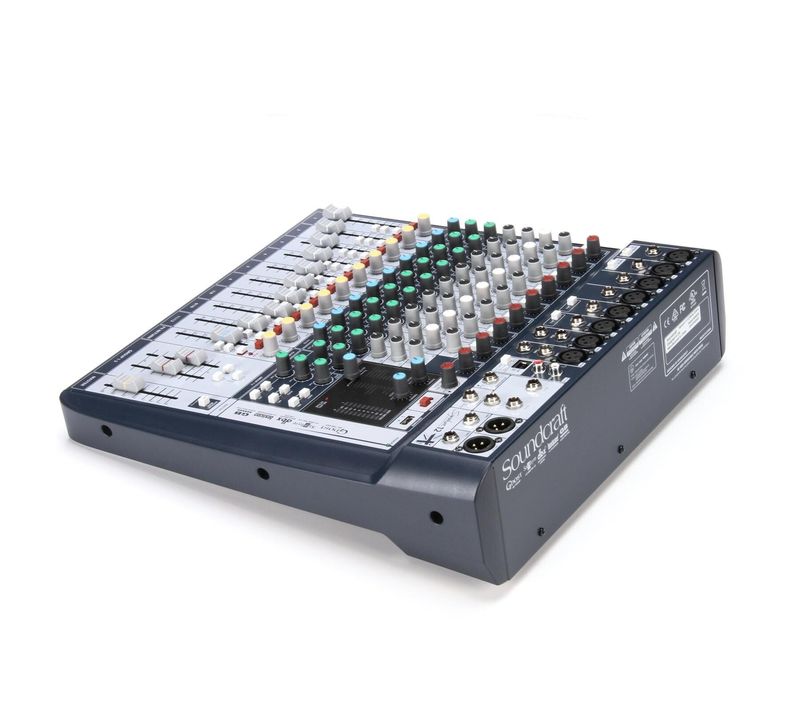

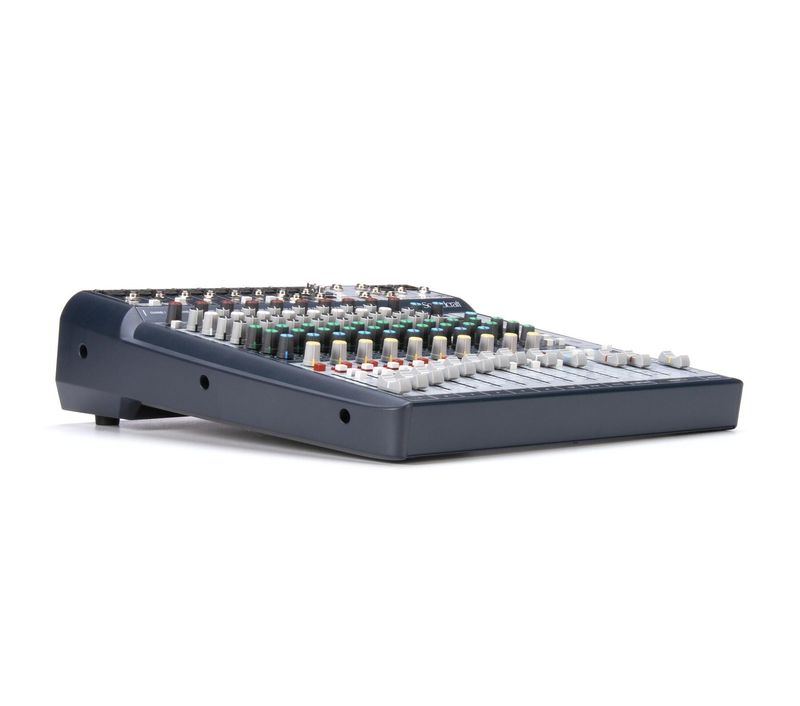

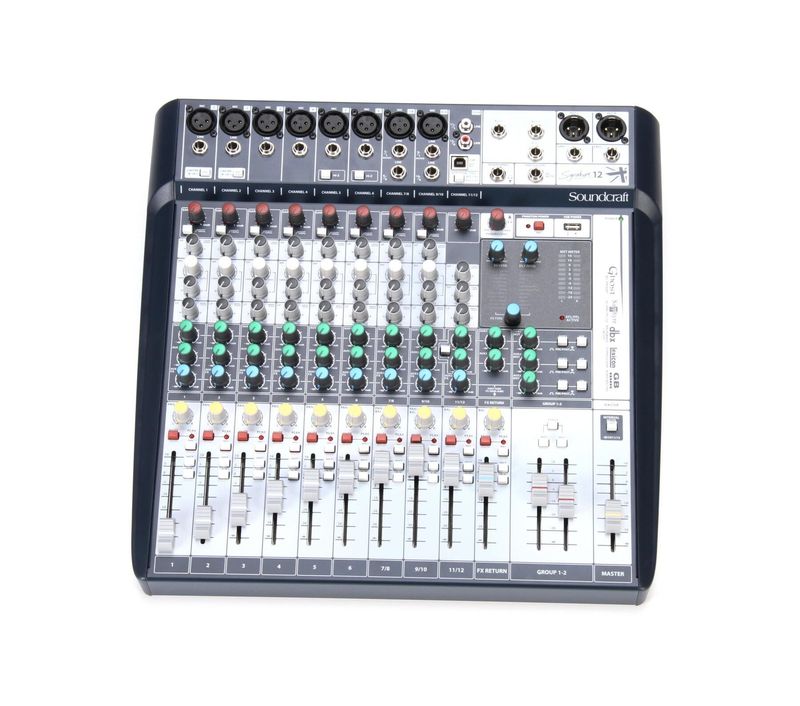

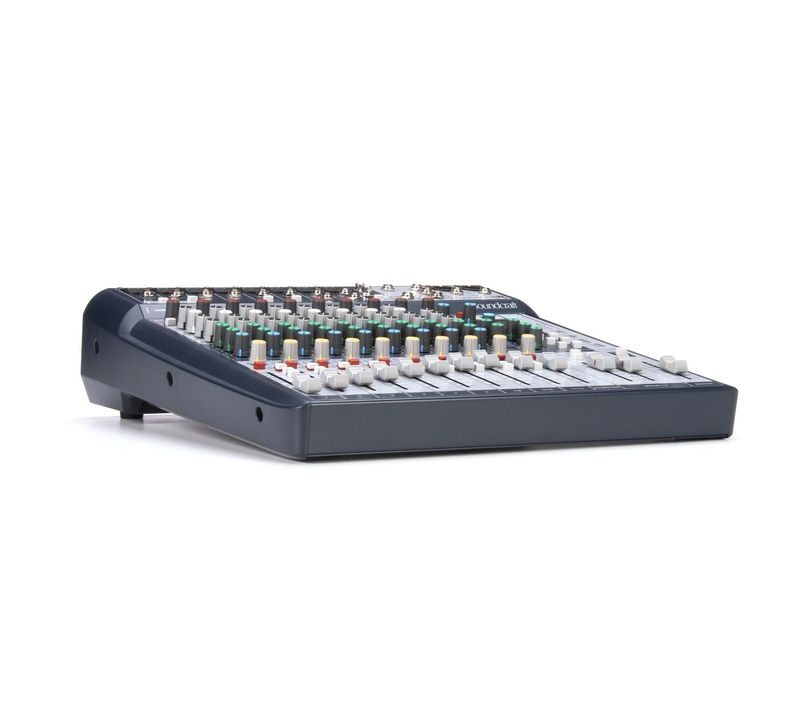

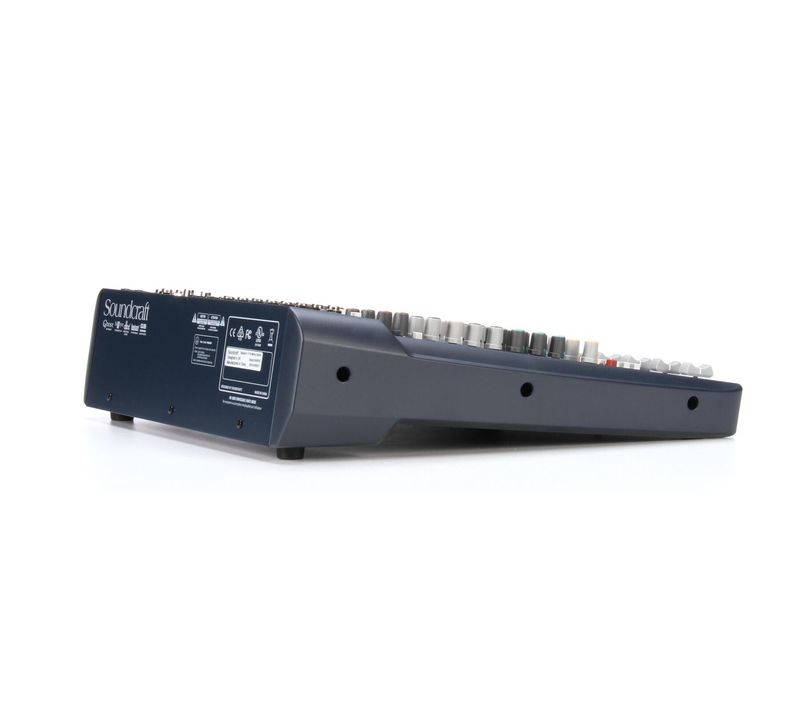

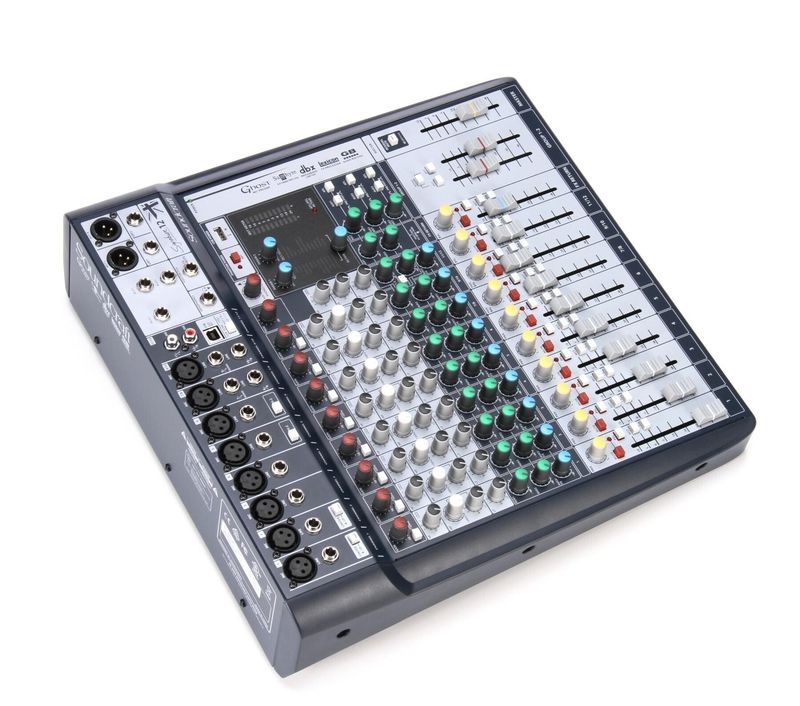

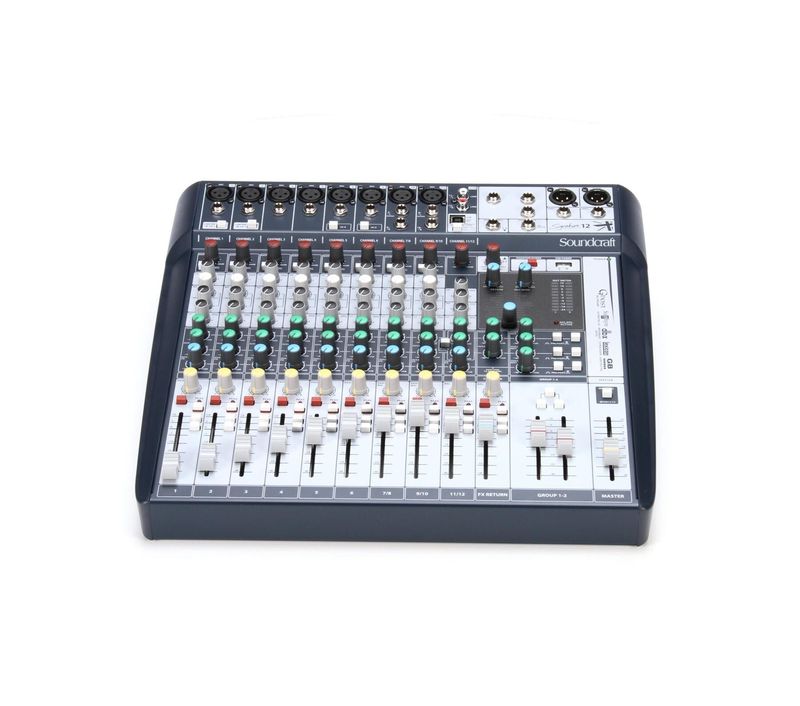

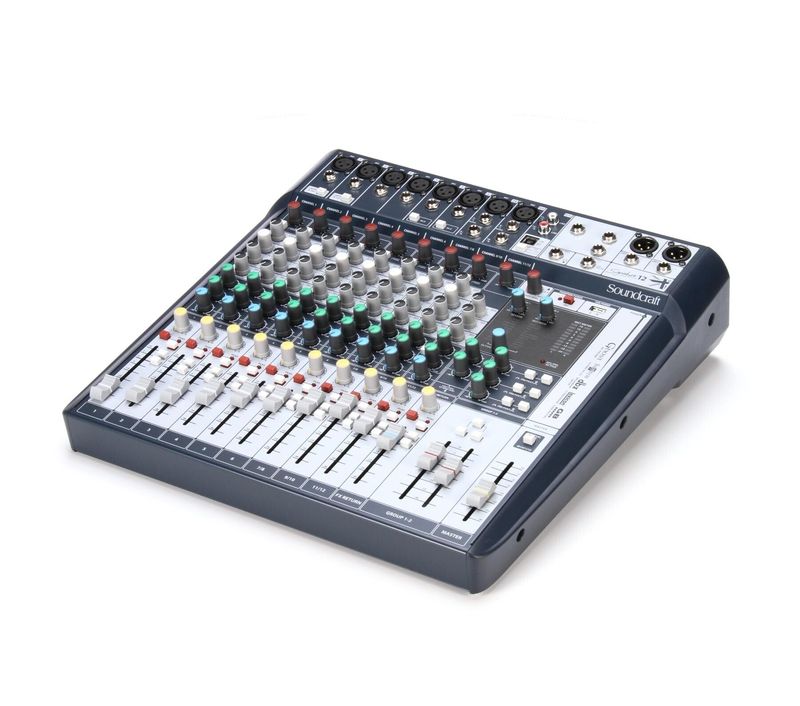

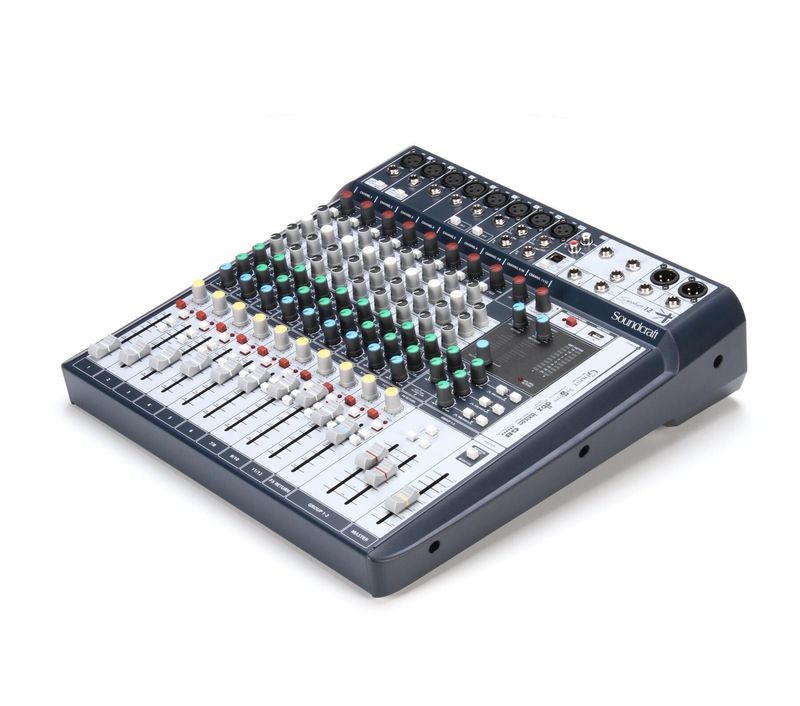

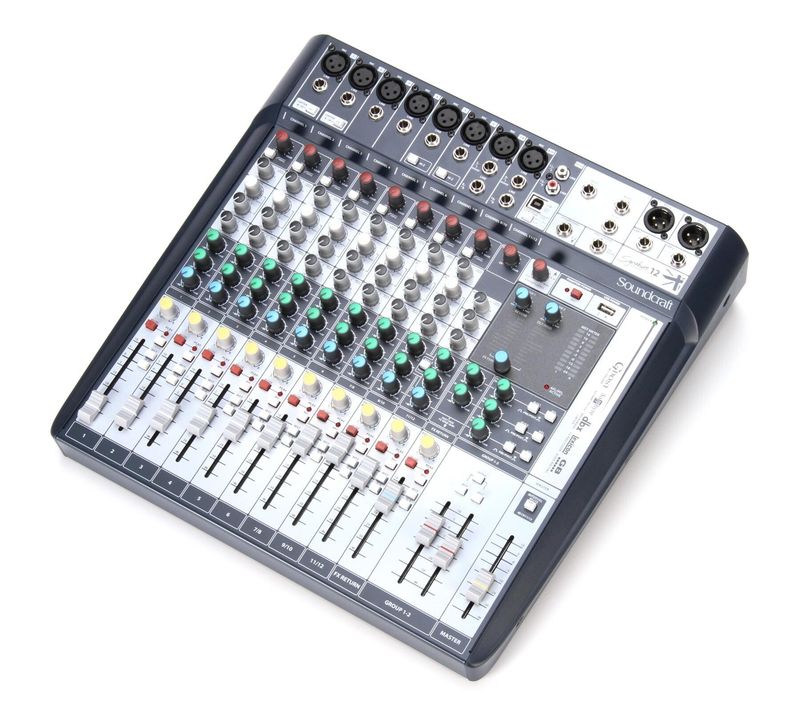

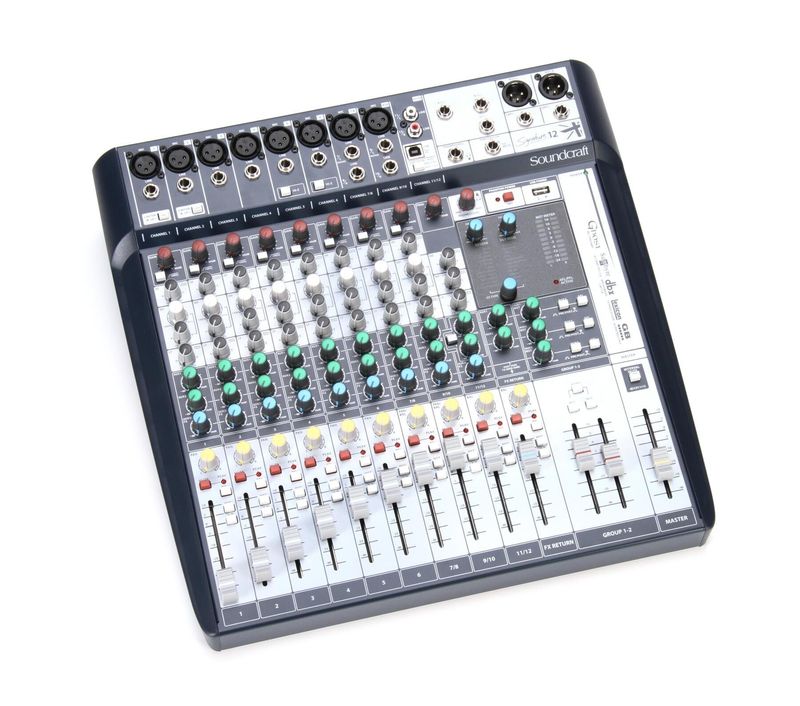

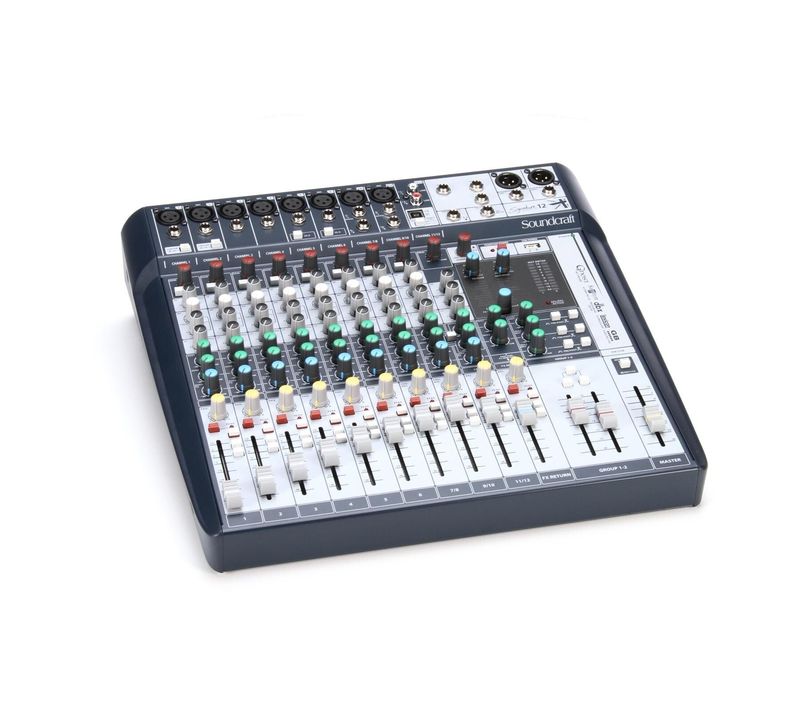

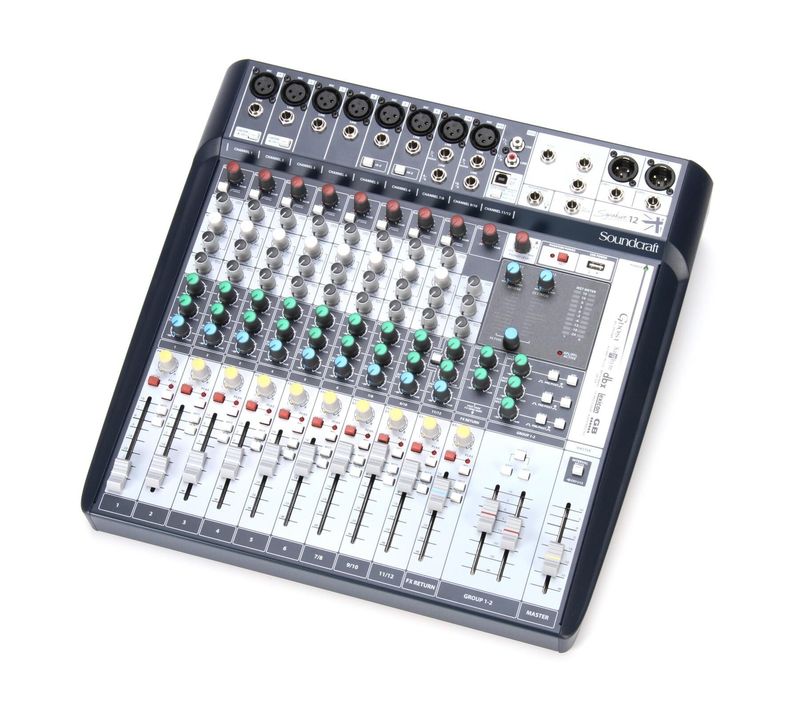

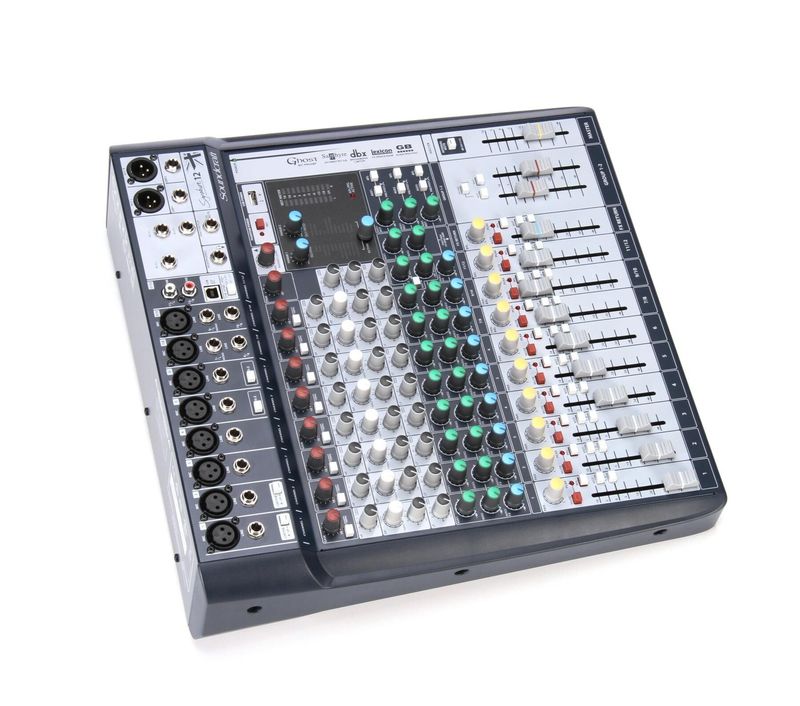

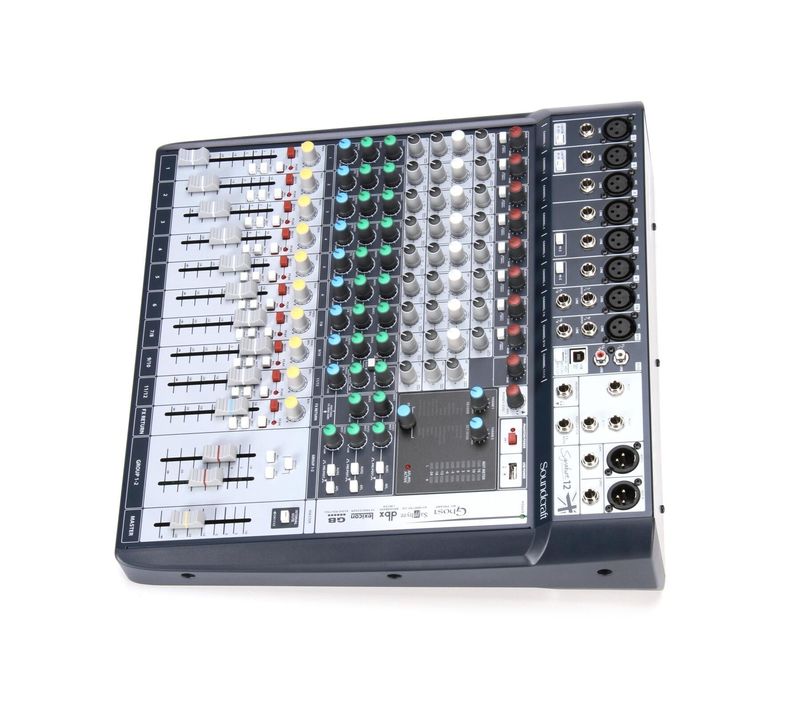

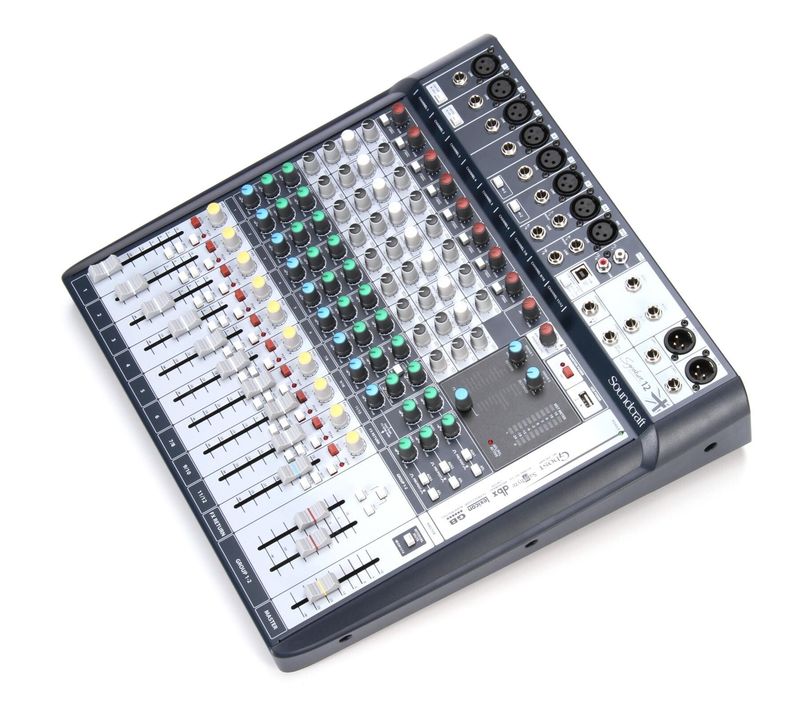

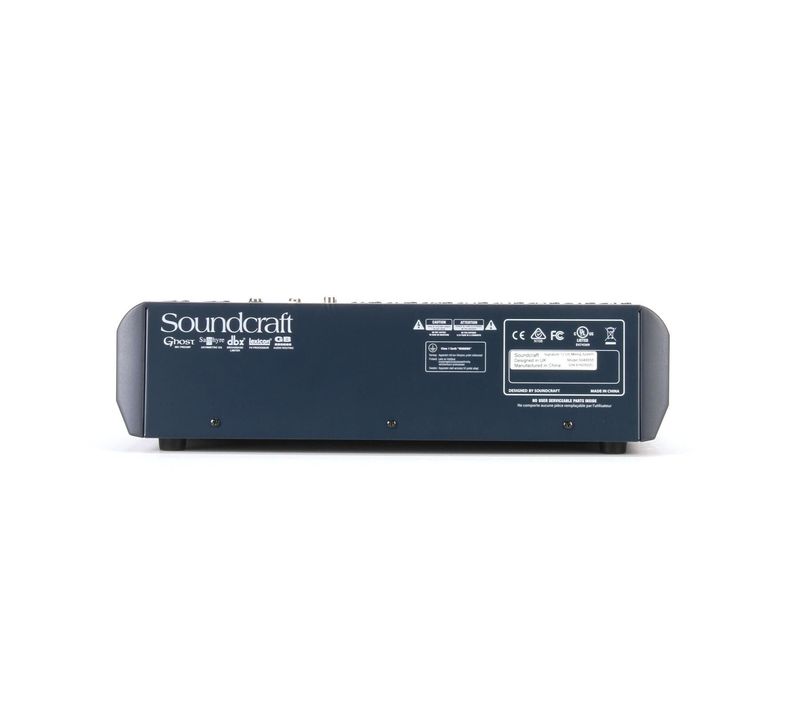

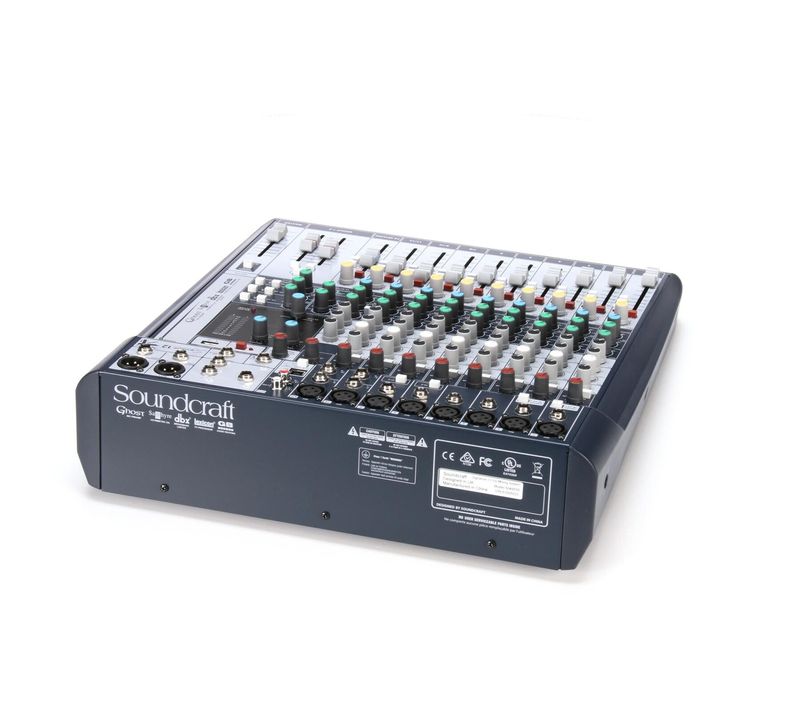

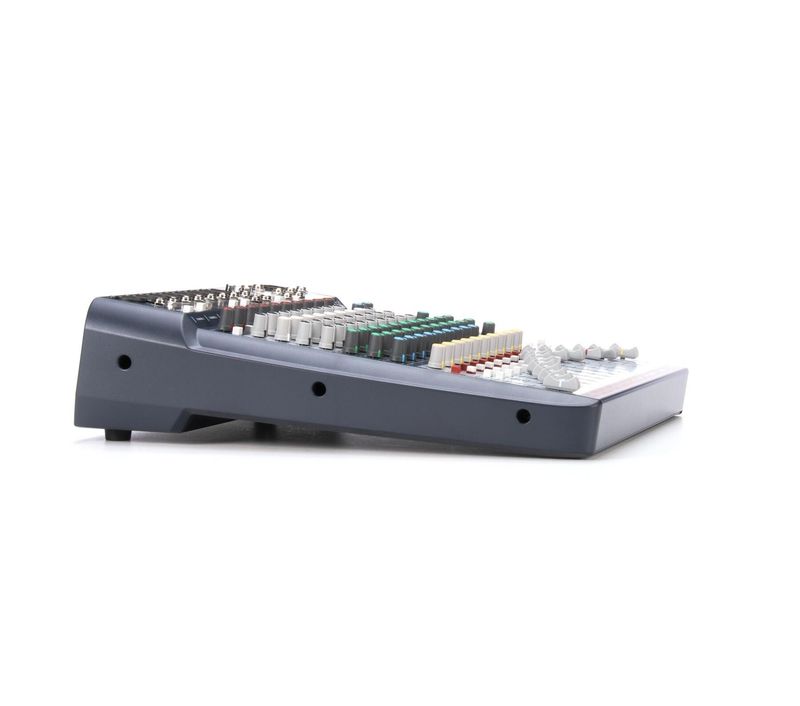

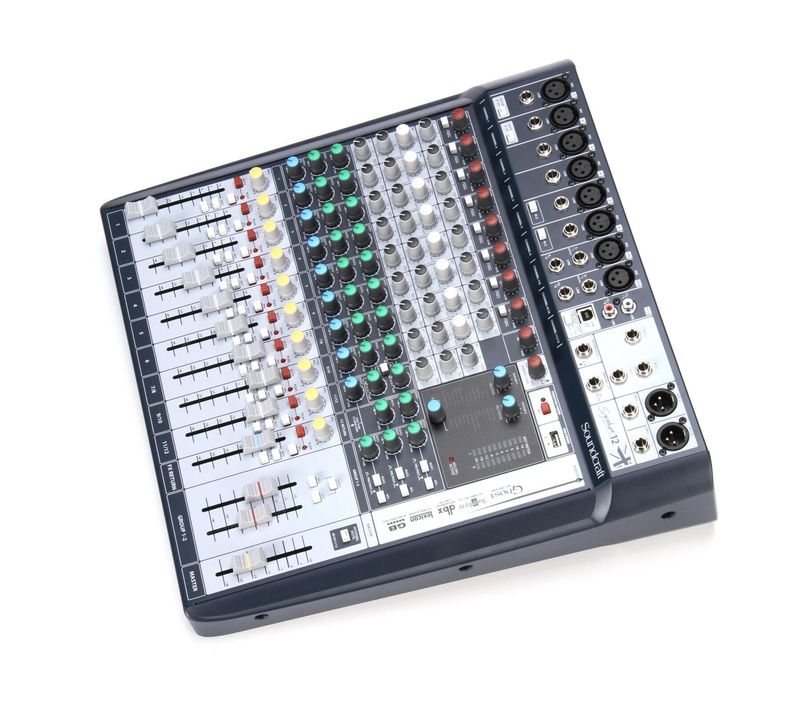

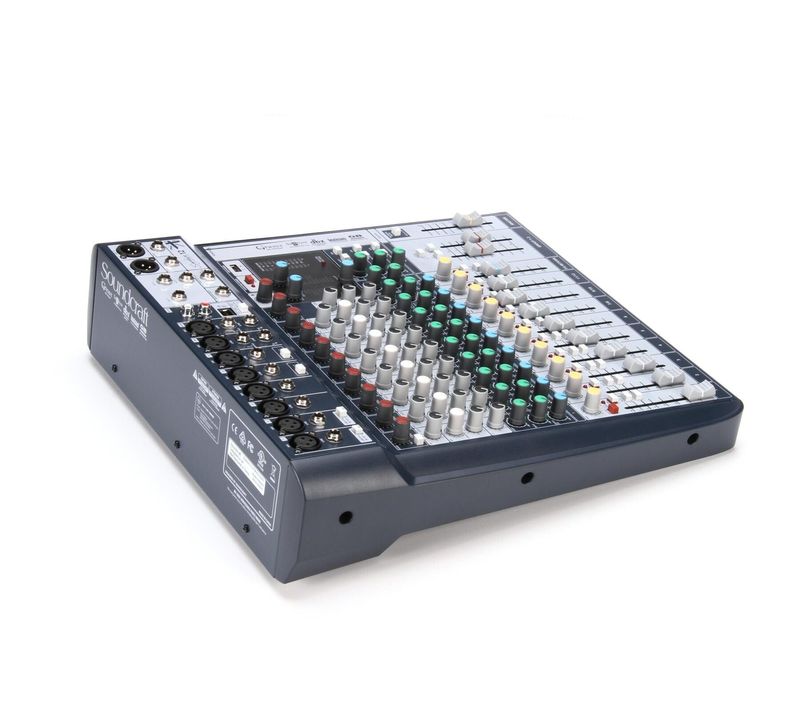

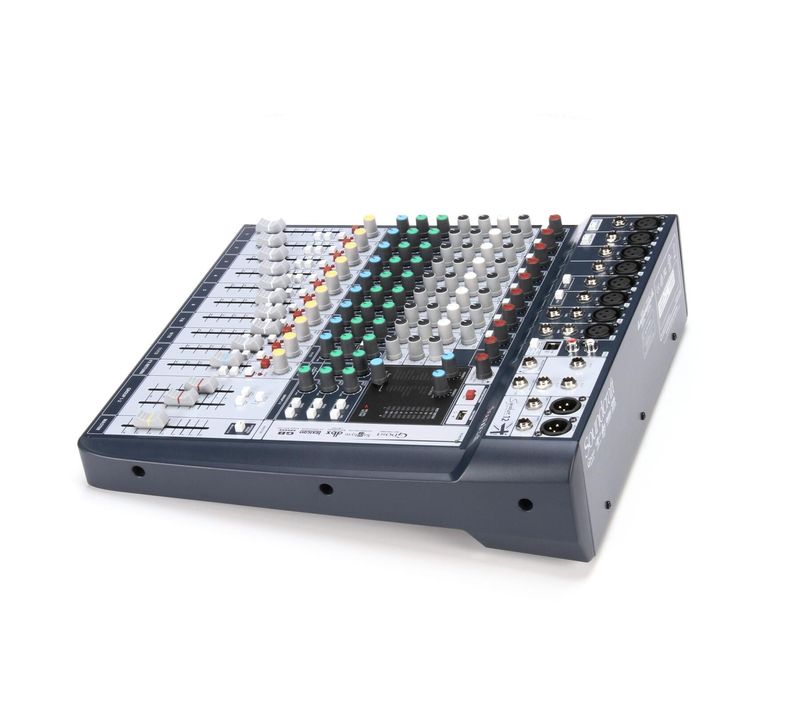

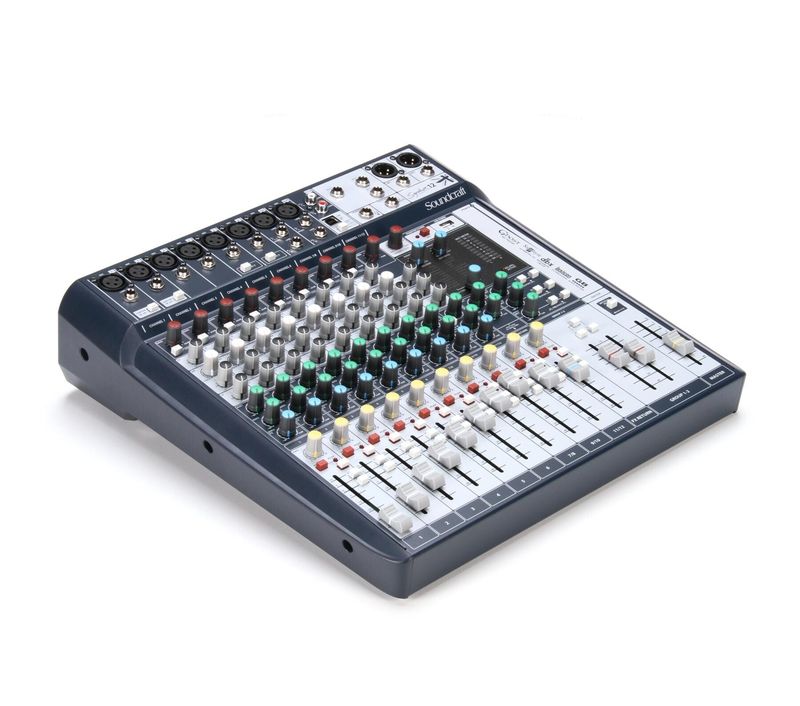

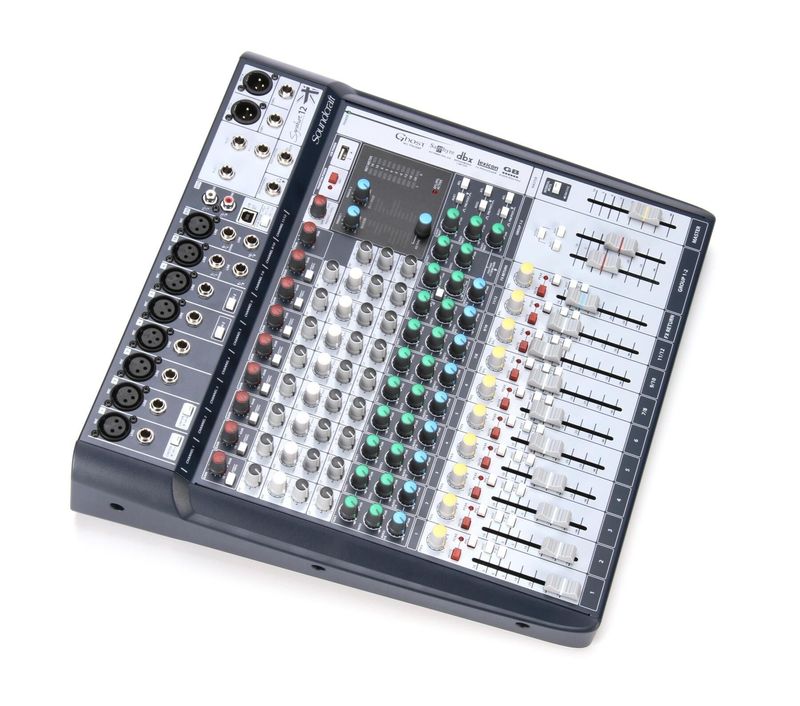

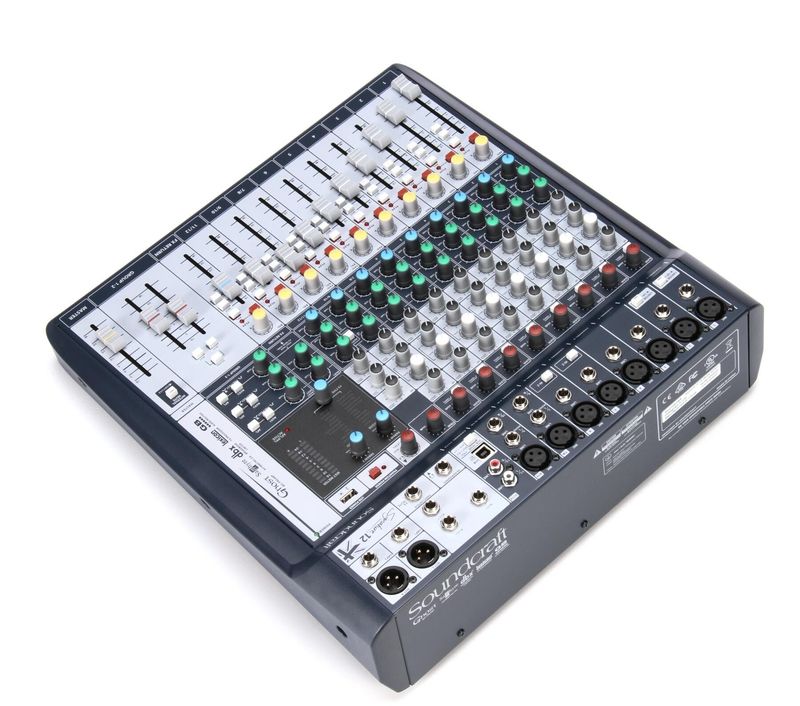

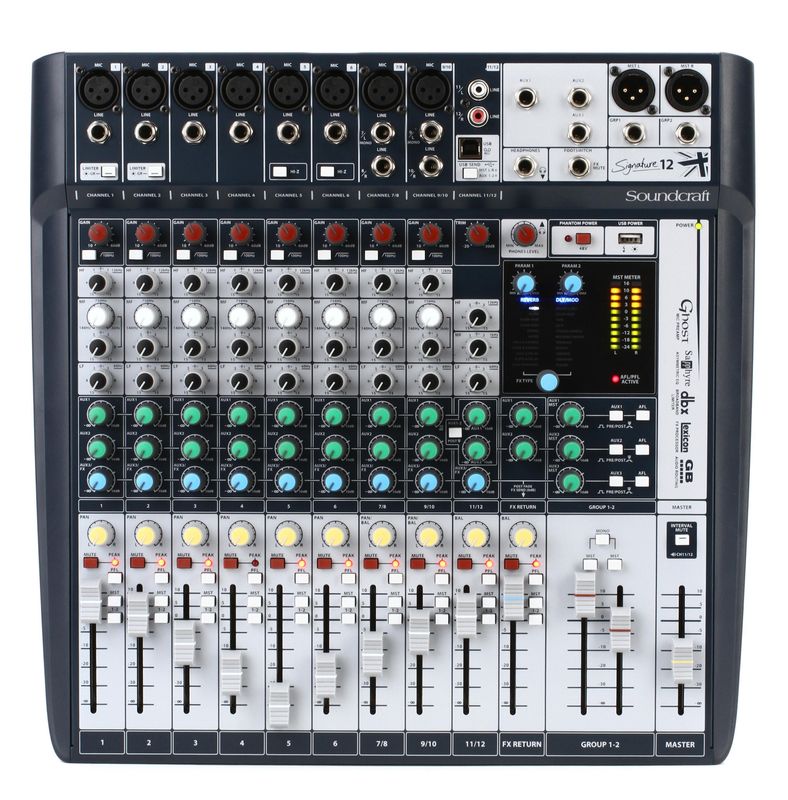

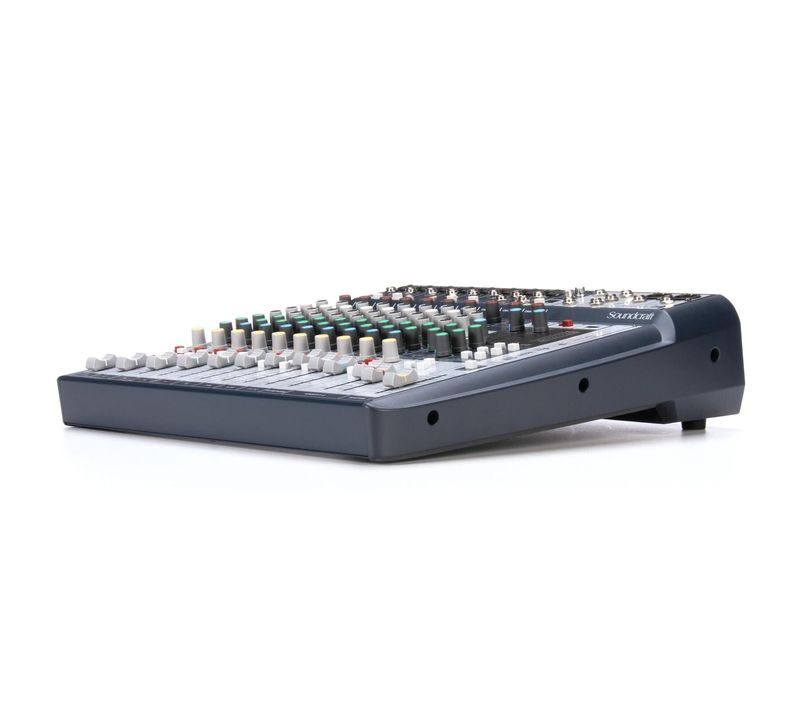

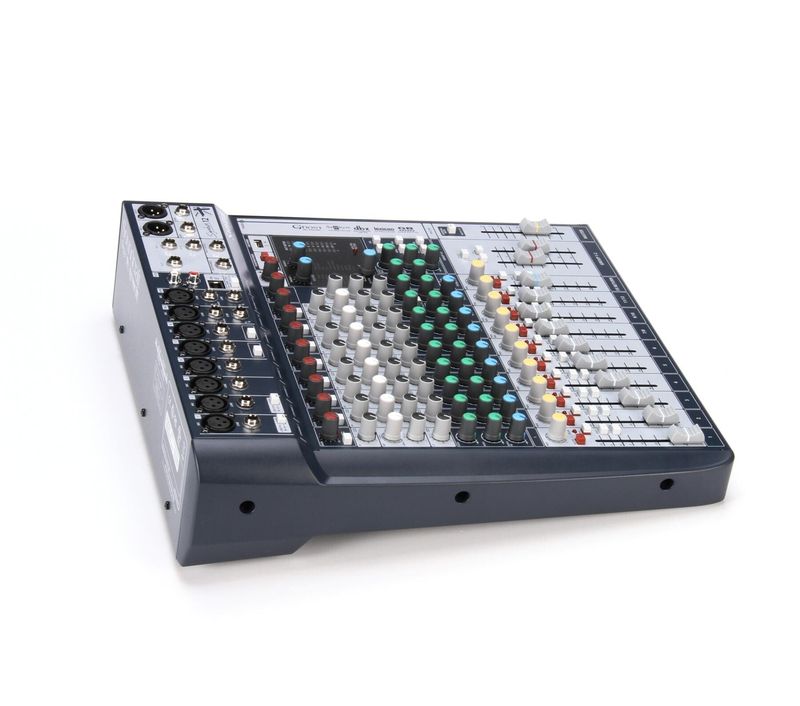

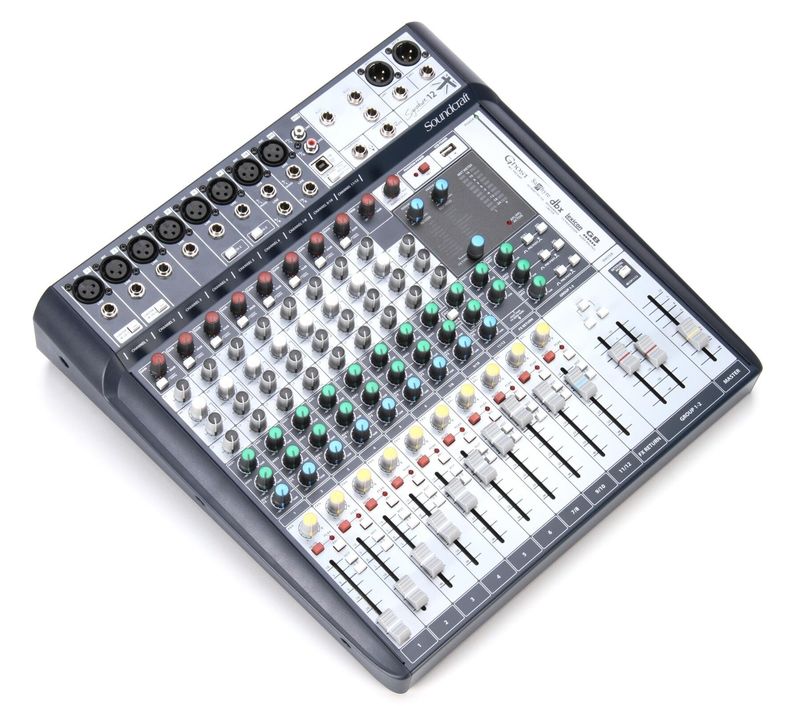

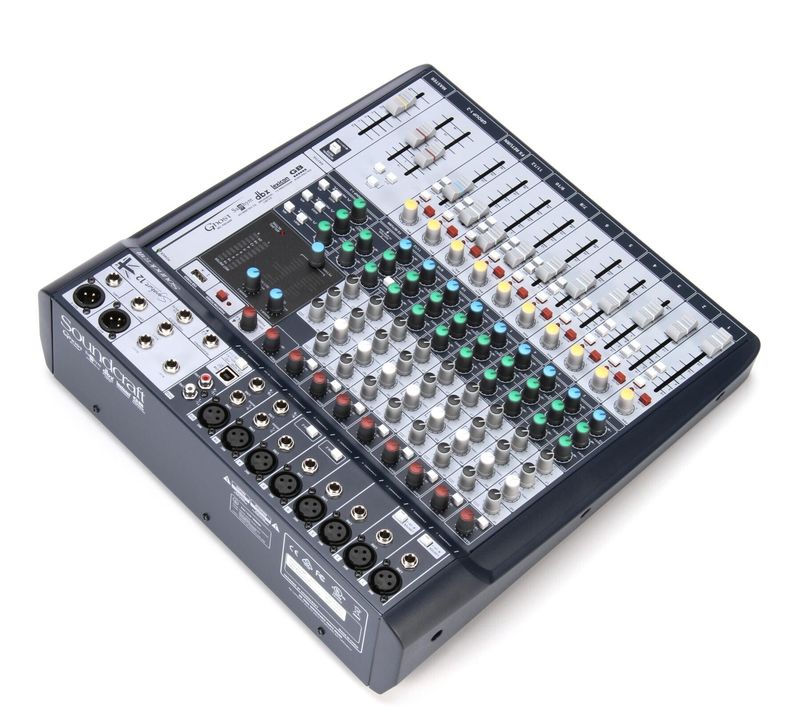

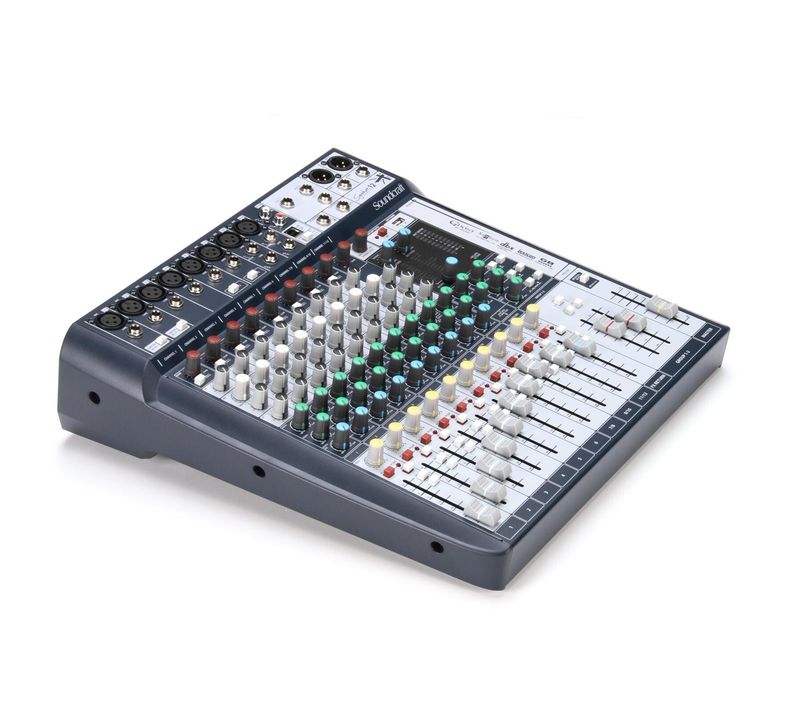

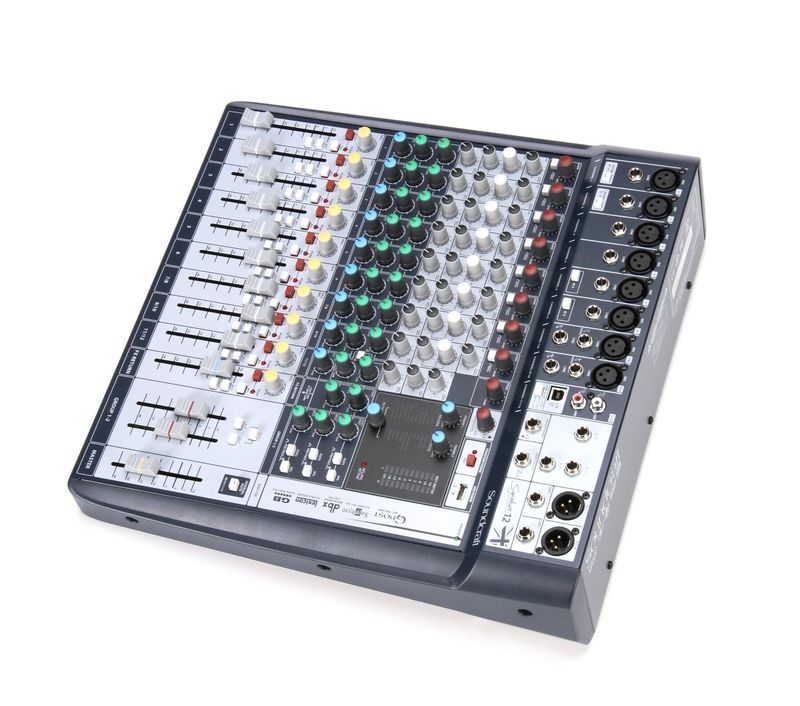

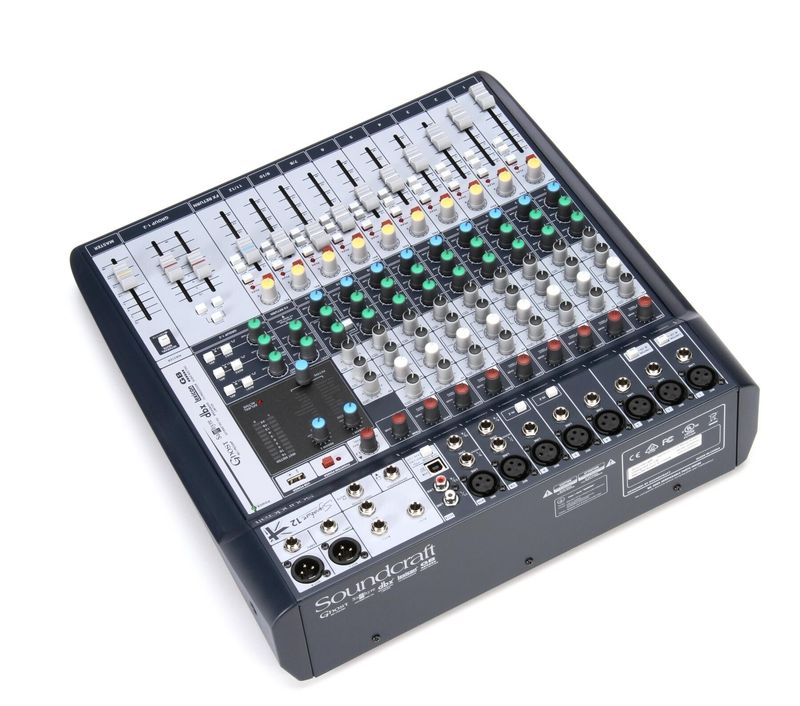

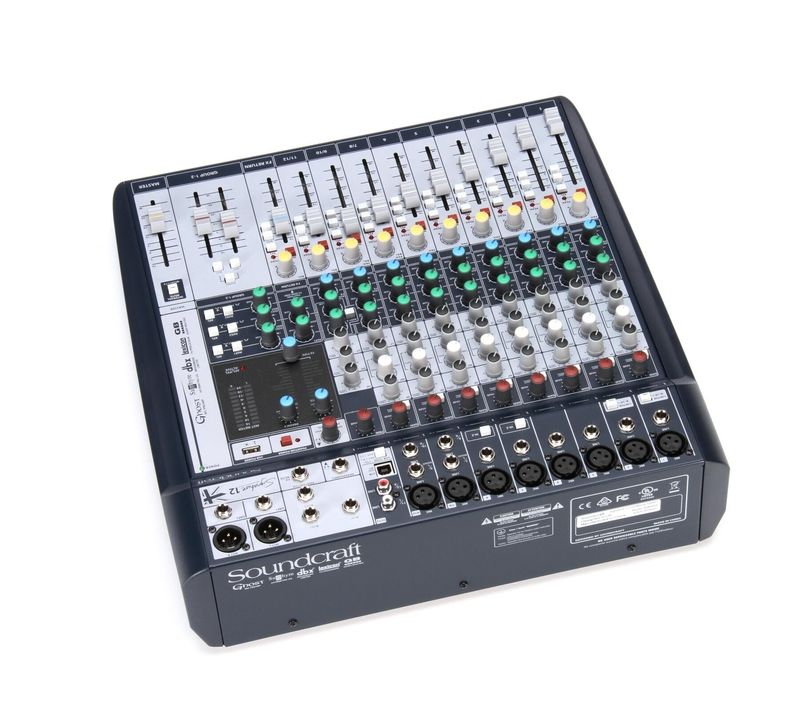

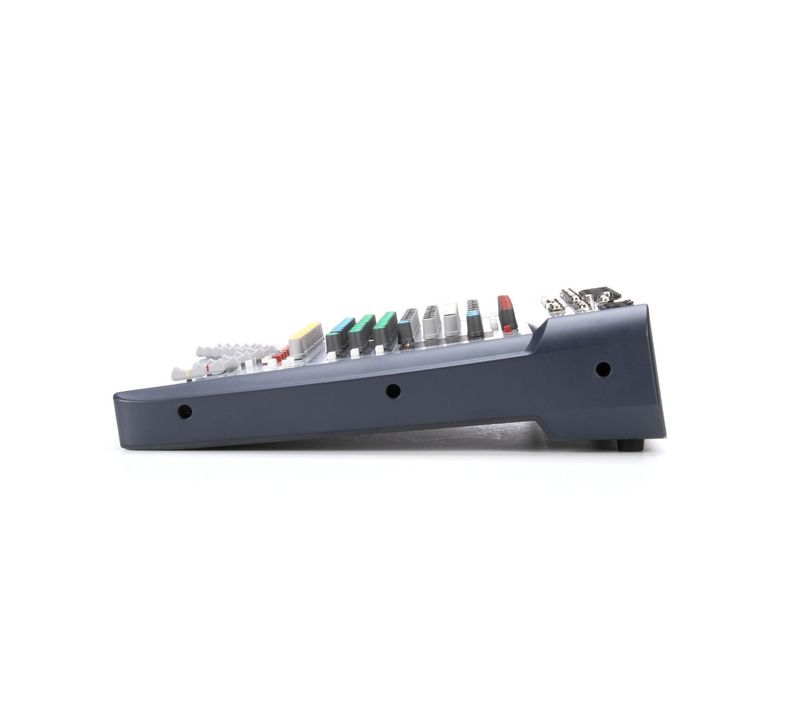

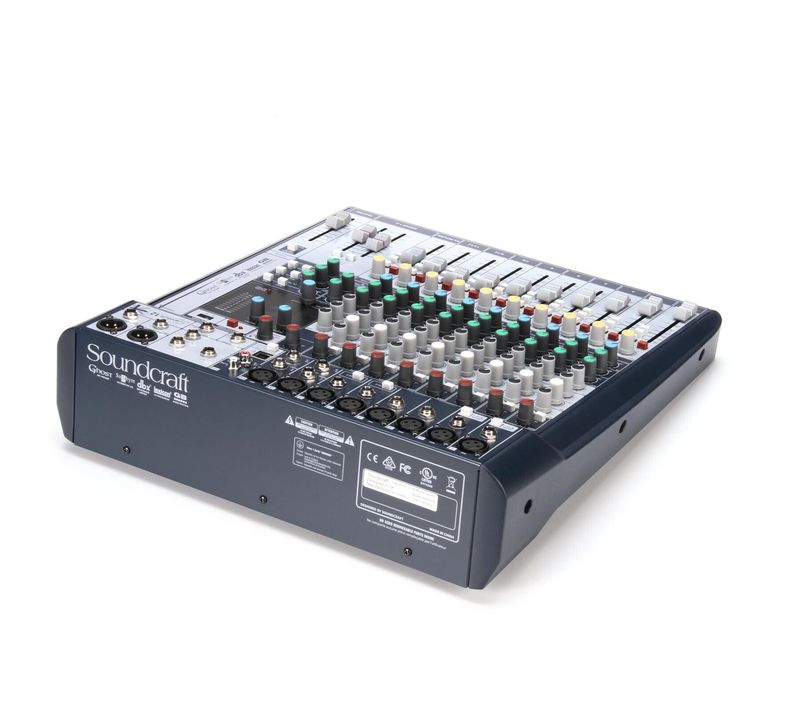

Soundcraft Signature 12 Overview

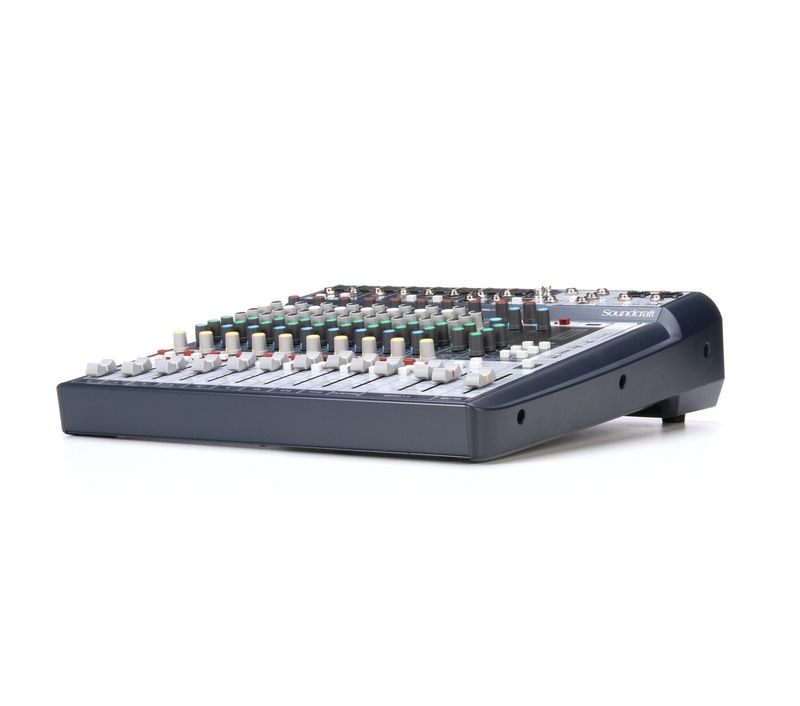

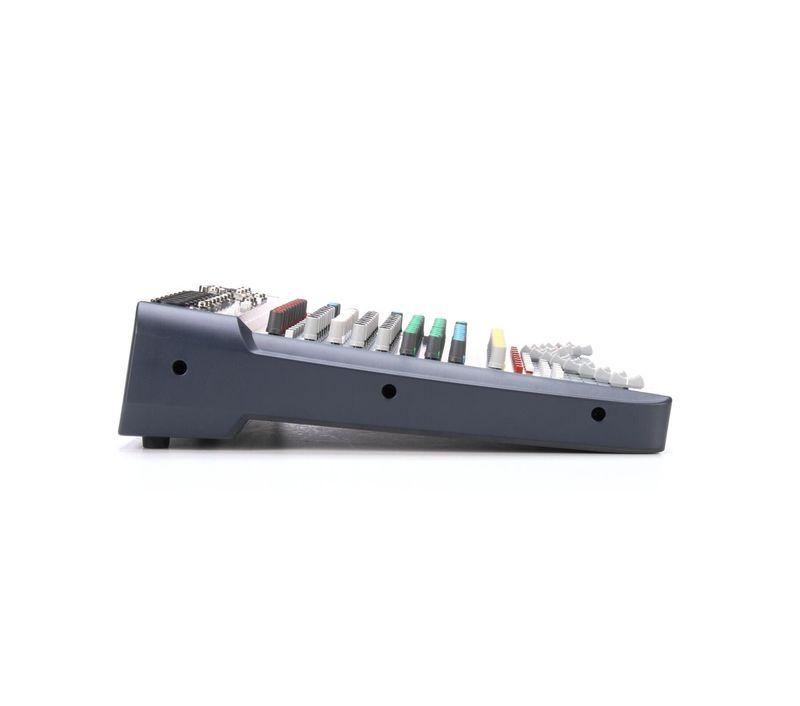

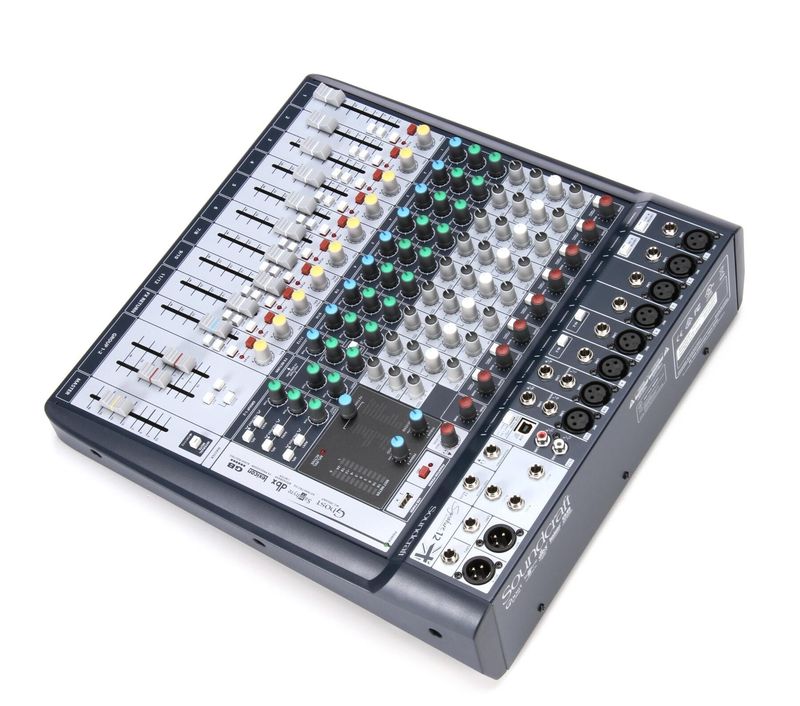

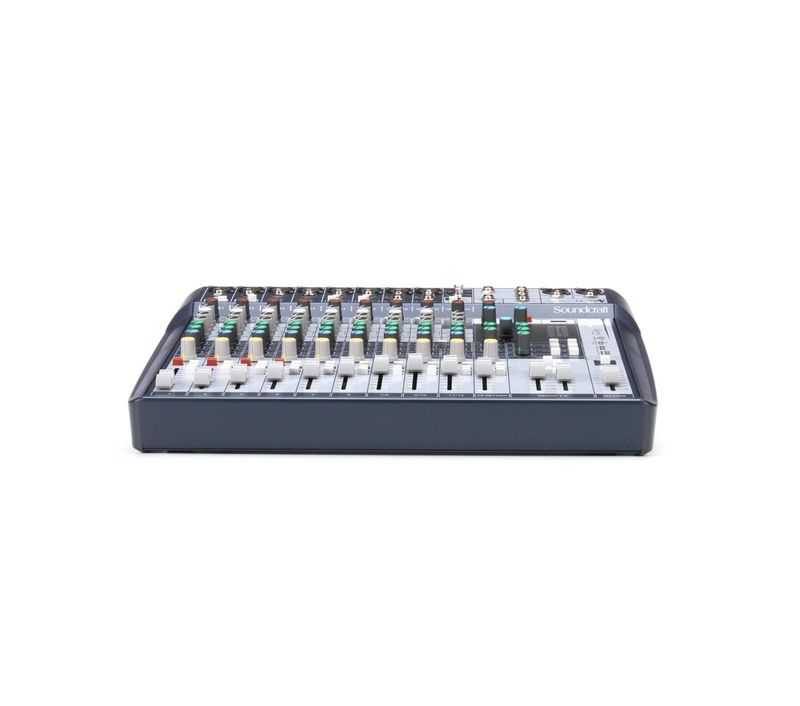

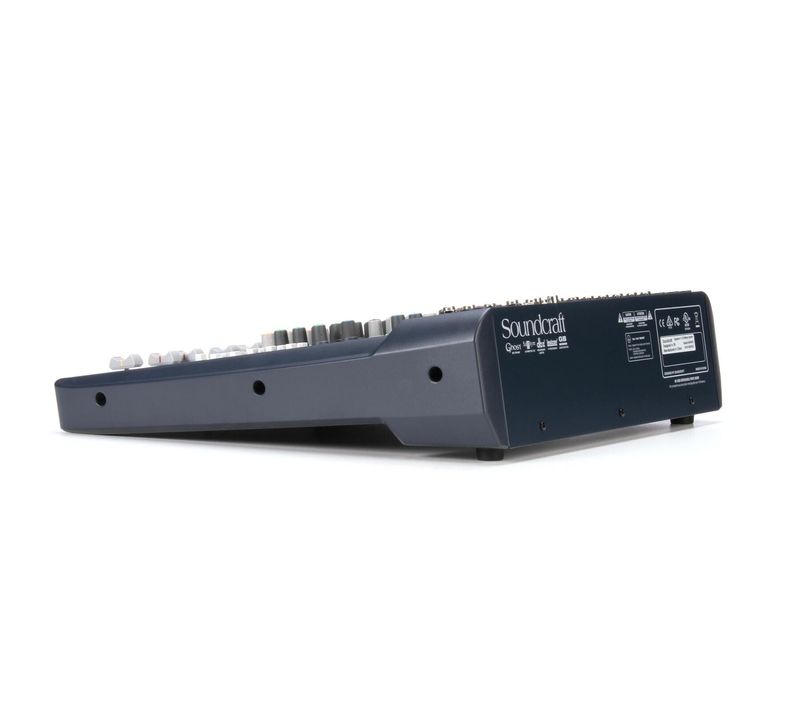

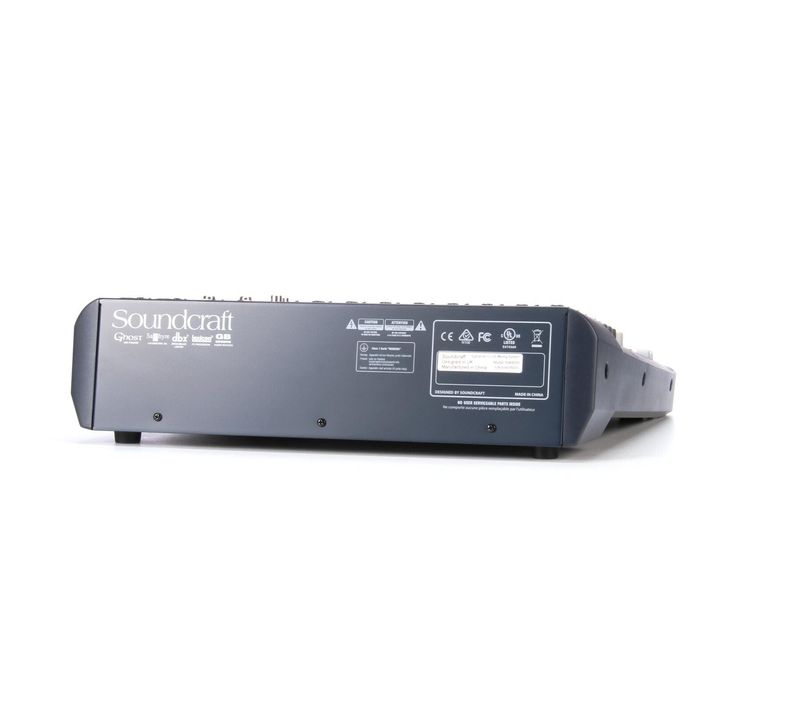

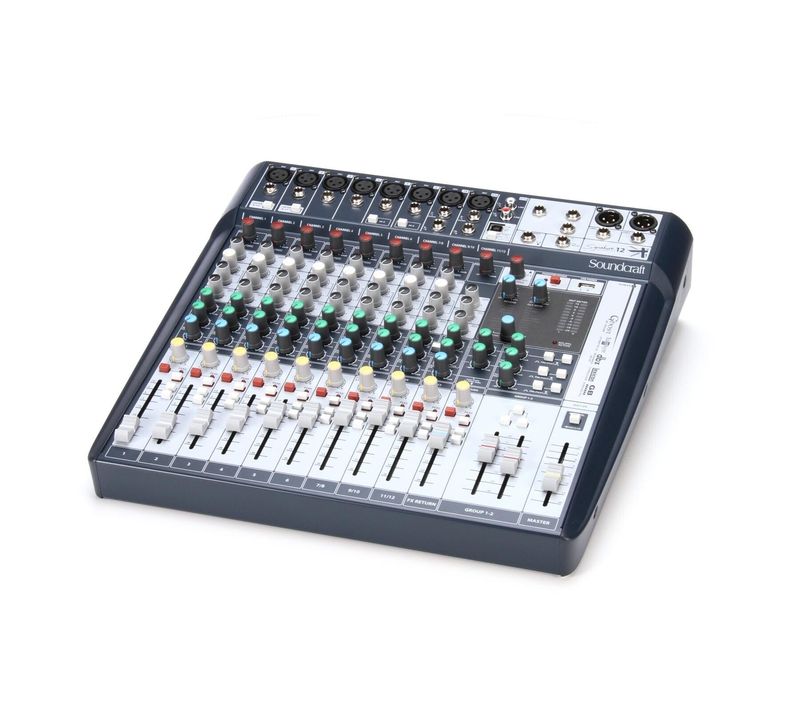

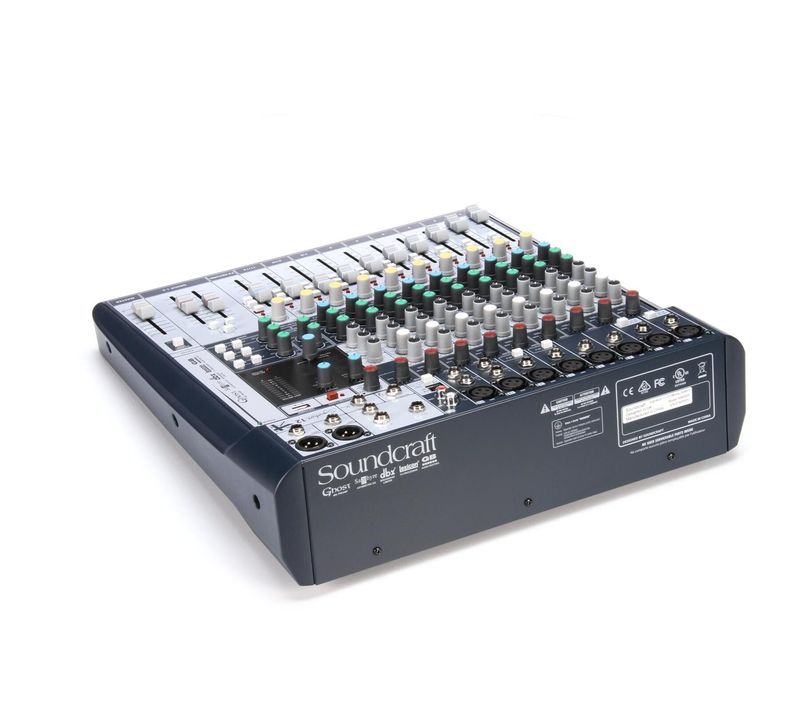

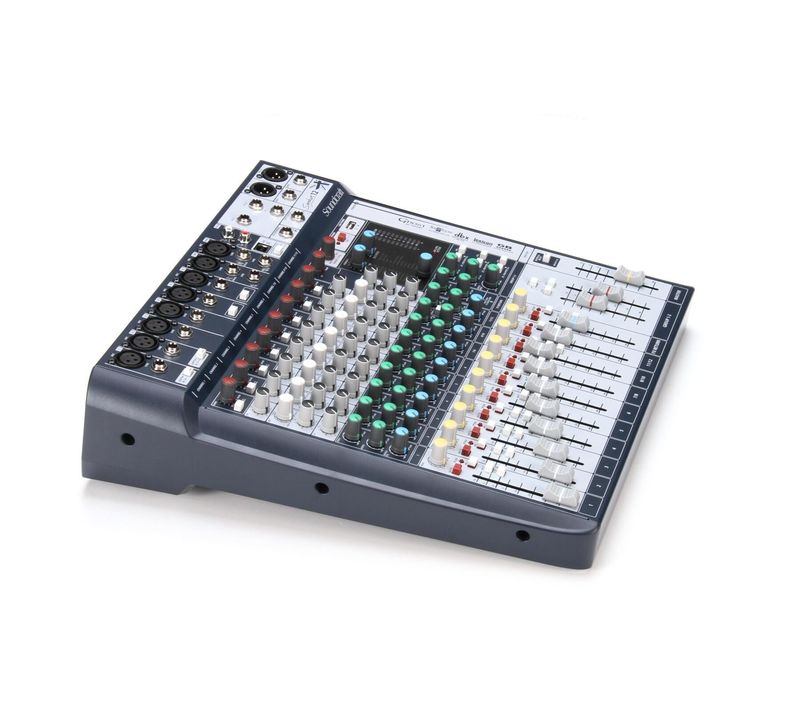

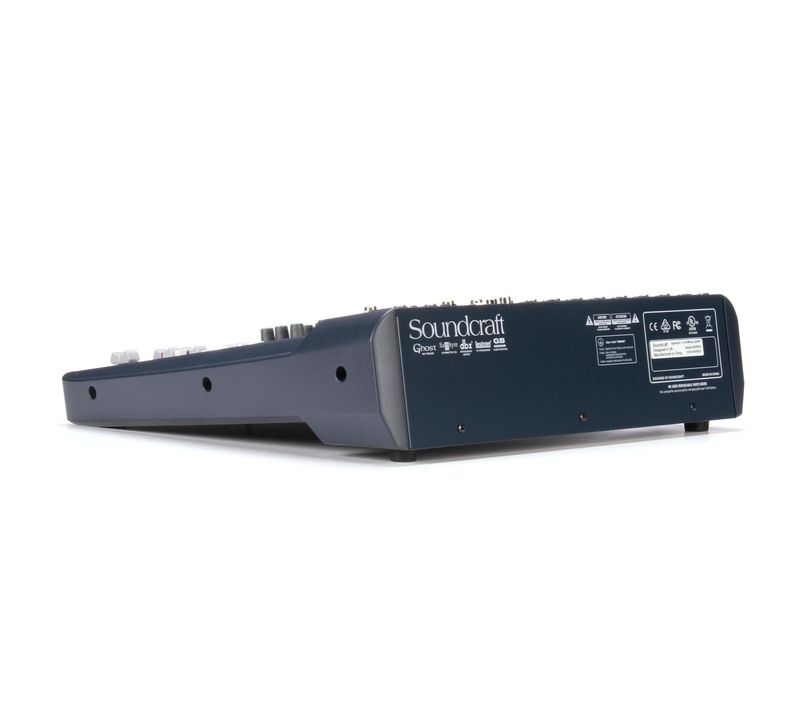

The Signature 12 from Soundcraft is a 12-input analog mixer with onboard effects. The Signature 12 features faders with GB Series audio routing, flexible pre/post switching on each Aux, subgroups with powerful routing and switching options, and dedicated outputs. Housed in a robust metal construction and equipped with an internal universal power supply, this mixer is recommended for use by musicians and bands, in music venues and theaters, for tour sound, houses of worship, and more.
The built-in Ghost microphone preamps deliver high-quality audio with a wide dynamic range, clarity, and a high level of headroom. Additionally, the mixer uses Sapphyre Asymmetric EQ for equalizing every vocal and instrumental element in a mix, and GB Series audio routing technology. The mixer provides a wide variety of built-in Lexicon studio-grade effects including reverb, chorus, and modulation, as well as dbx limiters on the input channels. XLR and switchable Hi-Z inputs enable guitars, basses, and other instruments to be connected directly.
The Signature 12 comes with a 2-in/2-out USB interface and free downloads of the Lexicon MPX-L native plug-in and Ableton Live 9 Lite.
High-performance 12-input small format analog mixer with onboard effects
Ghost mic preamps with low noise performance
Sapphyre British EQ with sweepable mid-bands per channel
Lexicon effects engine featuring reverbs, delays, choruses, and modulations
dbx limiters (high-ratio compressors) on input channels
2-in/2-out USB audio playback and recording
Switchable Hi-Z inputs for guitars, basses, and other instruments
Hi-pass filters (low-cut) and 48V phantom power on all mic channels
Comprehensive GB Series audio routing
Robust metal construction for tour-grade build quality and reliability
Internal universal power supply
Soundcraft Signature 12 Specs
| Channels | 12 |
| Preamps | 8 x Ghost |
| Input Limiter | dbx: 2 |
| Effects | Lexicon: Single engine |
| Faders | 2" (60 mm) |
| Frequency Response | Mic / Line In to any Output: +/-1.5 dB, 20 Hz to 20 kHz |
| THD | Mono Mic Sensitivity -30 dBu, Input level -16 dBu, +14 dBu @ Mix Output: < 0.002% @ 1 kHz
Stereo Mic Sensitivity -30 dBu, Input level -16 dBu, +14 dBu @ Mix Output: < 0.007% @ 1 kHz |
| Noise | Mono Mic Input E.I.N. (max gain): <-126 dBu (150 Ohms source)
Stereo Mic Input E.I.N. (max gain): <-124 dBu (150 Ohms source) |
| Crosstalk | Channel Mute: >-90 dB
Fader Cut-off (rel +10 mark): >-90 dB
Aux Send Pots Offness: >-82 dB |
| EQ Section | EQ (Mono inputs)
HF: 12 kHz, +/-15 dB
MF (swept): 140 Hz to 3 kHz, +/-15 dB
LF: 60 Hz, +/-15 dB
EQ (Stereo inputs)
HF: 12 kHz, +/-15 dB
MF: 1 kHz, +/-15 dB
LF: 60 Hz, +/-15 dB |
| Input and Output Level | Mic Input: +12.5 dBu max
Line Input: >+26 dBu max
Stereo Inputs: >+26 dBu max
Mix Output: +21.5 dBu max
Headphones (@150 Ohms): 300 mW |
| Input and Output Impedance | Mic Input: 1.2 kOhms
Hi-Z Input: 968 kOhms
Line Input: 10 kOhms
Stereo Input: 21.5 kOhms
Outputs: 150 Ohms (balanced), 75 Ohms (unbalanced) |
| USB Audio | Inputs/Outputs: 2-in, 2-out
Bit Depth: 16-bit, 24-bit
Sampling rate: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz |
| Operating Conditions | Temperature Range: 41 to 104°F / 5 to 40°C |
| Power Consumption | <60 VA |
| Dimensions | 19.3 x 17.9 x 8.3" / 490.0 x 455.0 x 210.0 mm |
| Weight | 12.5 lb / 5.7 kg |
Packaging Info
| Package Weight | 15.8 lb |
| Box Dimensions (LxWxH) | 19.2 x 18.1 x 8.3" |
