Yorkville Sound ES18P Overview

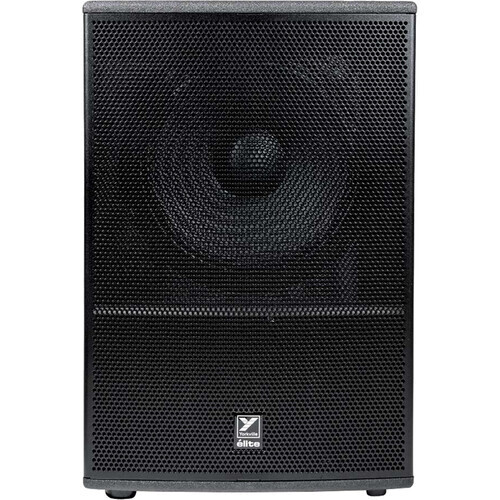

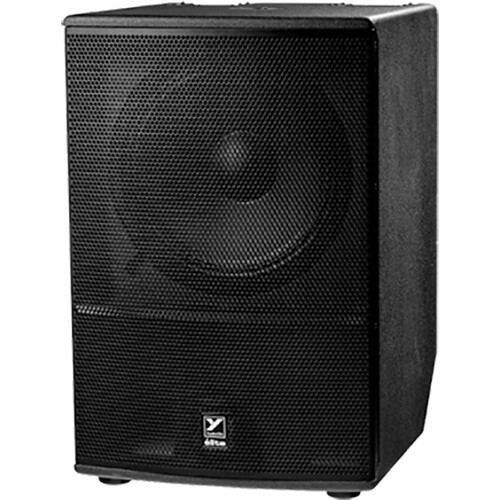

The black Elite Series ES18P 18" Powered Subwoofer from Yorkville Sound features three DSP-based preset modes for increased flexibility in any live sound or club application. It features an 18" driver with a 4" voice coil. The subwoofer offers a peak power output of 3200W and peak SPL of 140 dB.
Yorkville Sound ES18P Specs
| Configuration | Active Subwoofer |
| Enclosure Type | Horn / Folded Horn Subwoofer |
| Total Power Capacity | 3200 W Peak |
Drivers
| HF Driver | None |
| MF Driver | None |
| LF Driver | 18" / 457.2 mm Woofer |
| LF Voice Coil | 4" / 101.6 mm |
Performance
| Frequency Response | 43 Hz to 150 Hz ±3 dB |

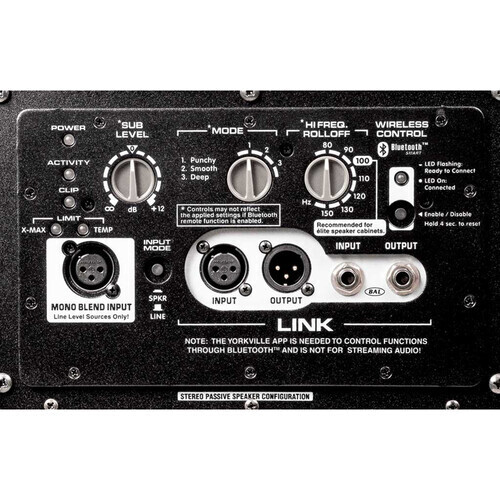

Connectivity
| Audio I/O | 1 x XLR 3-Pin Female Input
1 x XLR 3-Pin Female Input
1 x 1/4" Input
1 x XLR Output
1 x 1/4" Output |
| Network I/O | None |
| USB | None |
| Wireless Connectivity | None |
Signal Processing
| EQ | None |
| Parametric EQ | None |
| Semi-Parametric EQ | None |
| Filters | 1 x Low-Pass:
80 Hz to 150 Hz |
| Dynamic Processing | HF Limiter |
| Alignment Delay | None |
| Phase Adjustment | None |
Power
| AC Input Power | 120 to 230 VAC, 50 / 60 Hz |
| Current Consumption | 120 VAC:
4 to 4.5 A
230 VAC:
2 to 2.3 A |
Physical
| Mounting | 0.1" / 3.5 mm Pole Socket (Top) |
| Handles | 2 x Top
2 x Bottom |
| Construction Material | Wood |
| Dimensions | to 6158 x 88" / to 147.3 x 223.5 cm |
| Weight | 137 lb / 62.1 kg |
Packaging Info
| Package Weight | 148 lb |
| Box Dimensions (LxWxH) | 36 x 24 x 24" |
